2 Port USB to RS232 /422 / 485 Adapter for Windows Linux and Mac

EOL NOTICE
This product is End Of Life effective Jan 1, 2018.

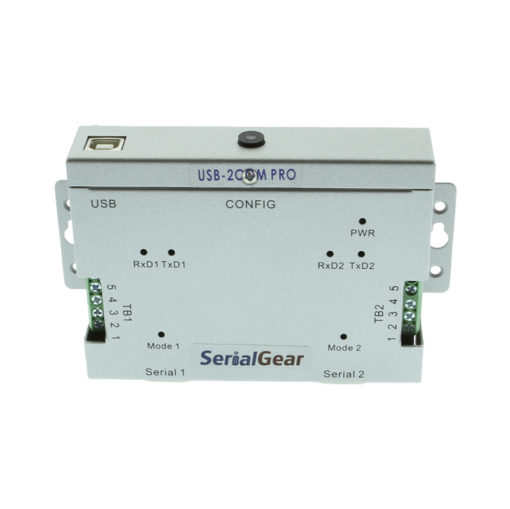

The 2 Port USB to RS-232 / RS-422 / RS-485 Serial Adapter supports Windows, Linux, and Mac systems that can support USB 2.0 port connections so existing serial devices can be used. The USBG-2COM-PRO is extremely flexible in offered communication standards.

The Industrial PRO Line supports flexible RS232, RS422, and RS485 port communication. Each port can be individually configured by software (No Jumper). The ports have standard DB9 male connectors. The industrial-grade metal chassis can be easily used for DIN-Rail mounting, the 8-Port and 16-port versions also fit in a 19″ rack mount.

The USBG-2COM-PRO 2-Port USB to RS-232 adapter with the 128 byte FIFO allows high-speed communication, even in heavy loaded systems. It’s unique features reduce the system load and also allows unusual speed settings like 500.000bps. A wired connection option via two(2) 5-pin Terminal Blocks is available on both sides of the serial adapter for use in easy wiring of devices.

Additional Features:

• Adds two RS-232, RS-422 or RS-485 serial port by connecting to a USB port
• Two DB9 male connectors and two 5-pin Terminal Block for easy wiring
• Easy operation mode change via software utility or console port
• Installed as standard Windows COM port
• SECC metal chassis with DIN rail bracket
• Requires no IRQ, DMA, I/O port
• Full RS-232 modem control signals and hardware/software flow control
• RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
• RS-422 data signals: TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS+, CTS-
• RS-485 4-wire data signals: TxD-, TxD+, RxD+, RxD-
• RS-485 2-wire data signals: Data-, Data+
• Automatic transmit and receive control for 2-wire RS-485 half-duplex mode
• Tx ,Rx Termination resistors installed on-board and easy enable/disable via software utility or console port
• Tx ,Rx BIASing resistors installed on-board and easy enable/disable via software utility or console port
• High speed serial port with the baud rate up to 921.6K bps
• LEDs of Power, TxD and RxD for easy port monitoring and diagnostics
• LEDs of mode indicating serial port operation mode
• Powered by USB port, no external power adapter required
• Easy plug and play installation and RS-232/RS-422/RS-485 device connection
• COM port number assigned can be changed to any COM port number required
• Works with USB 1.1 & 2.0 host port

OS Support:

• Supports Windows 10, 8, 7, Vista, XP
• Linux and Mac OS.X

Dimensions:

• 115 x 85 x 26 mm (W x L x H)
• 135 x 89 x 22 mm with DB9 connector and ears

Product Specifications

Technical Specifications:

RS-232 & RS-422 & RS-485 DB9 Male Connector Pin-outs

RS-232 Male

RS-232 Signal Pin-outs of DB-9 Male

Pin Signal     1 DCD     2 RxD     3 TxD     4 DTR     5 GND     6 DSR     7 RTS     8 CTS     9 RI

RS-422 DB9 Male

RS-422 Signal Pin-outs of DB-9 Male

Pin Signal     1 Tx- (A)     2 Tx+(B)     3 Rx+(B)     4 Rx- (A)     5 GND     6 RTS- (A)     7 RTS+(B)     8 CTS+(B)     9 CTS- (A)

RS-485 DB9 Male

RS-485 4-Wire (Full duplex) Signal Pin-outs of DB-9 Male Connector

Pin Signal     1 Tx- (A)     2 Tx+(B)     3 Rx+(B)     4 Rx- (A)     5 GND

RS-485 2-Wire (Half duplex) Signal Pin-outs of DB-9 Male Connector

Pin Signal     1 Data- (A)     2 Data+(B)     5 GND

RS-232 Terminal Block

RS-232 Signal Pin-outs of Terminal Block

Pin Signal     1 DCD     2 RxD     3 TxD     4 DTR     5 GND

RS-422 Terminal Block

RS-422 Signal Pin-outs of Terminal Block

Pin Signal     1 Tx- (A)     2 Tx+(B)     3 Rx+(B)     4 Rx- (A)     5 GND

RS-485 Terminal Block

RS-485 2-Wire (Half duplex) Signal Pin-outs of Terminal Block

Pin Signal     1 Data- (A)     2 Data+(B)     5 GND

RS-485 4-Wire (Full duplex) Signal Pin-outs of Terminal Block

Pin Signal     1 Tx- (A)     2 Tx+(B)     3 Rx+(B)     4 Rx- (A)     5 GND

RS-422 Signal Wiring

Point-to-Point 4 Wire Full Duplex

USB-2COM PRO                                    RS-422 Device

RS-422 with Handshaking

USB-2COM PRO                                   RS-422 Device

RS-485 Signal Wiring

Point-to-Point 4-Wire Full Duplex

USB-2COM PRO                               RS-485 Device

Multidrop RS-485 2-Wire Half-duplex

USB-2COM PRO                               RS-485 Device
