ChargeIT! Dual Port USB Charger 1 Type-C PD 27W, 1 Type-A 15W, Variable Voltage 12~28V Input

Model No. CG-PD27QC

The Low Power ChargeIT! Dual Port Charger provides an effective amount of Charging power ideal for Chromebooks, Tablets, Cell phones, and light duty laptops. Featuring an industrial-grade design, the USB PD charger incorporates both Standard Type-A and USB PD Type-C charging ports.The wide DC input voltage range is ideal for 12V DC and 24V DC Vehicle applications.

  • DC Input Voltage: 10~28V
  • Output Voltage: 3~12V, Adjustable
  • Power Connector: 2-Pin Terminal Block
  • Mounting Options: Wall & Surface
  • Provides one USB Type-A 15watt or one USB-C PD 27watt PPS port.
  • Multi-protection for high reliability including ESD, over-voltage and over-temperature protection.
  • Integrated mounting flanges for secure installation.

$24.99

Bulk Pricing

Model No. CG-PD27QC

In stock

Volume Pricing

Units Discount Price
1 - 24 $24.99
25 - 99 8 % $22.99
100 - 499 12 % $21.99
500+ 20.01 % $19.99
Need some help? Contact us.

Quick Links:

Description

Description:

Coolgear’s Chargeit! mini USB PD Low Power Charger features an industrial-grade chassis with 1 USB Type-A and 1 USB-C charging port. It is designed to handle the harsh environments of industrial and commercial charging applications. Surface mounting flanges are built-in to the steel chassis for secure installations. This low-power dual port industrial adapter provides an effective amount of Charging power ideal for Chromebooks, Tablets, Cell phones, and light duty laptops.

Supports USB PD3.0 including Programmable Power Supply:

Programmable Power Supply (PPS) capability allows for small step-wise changes in voltage and current. PPS capability allows for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction).

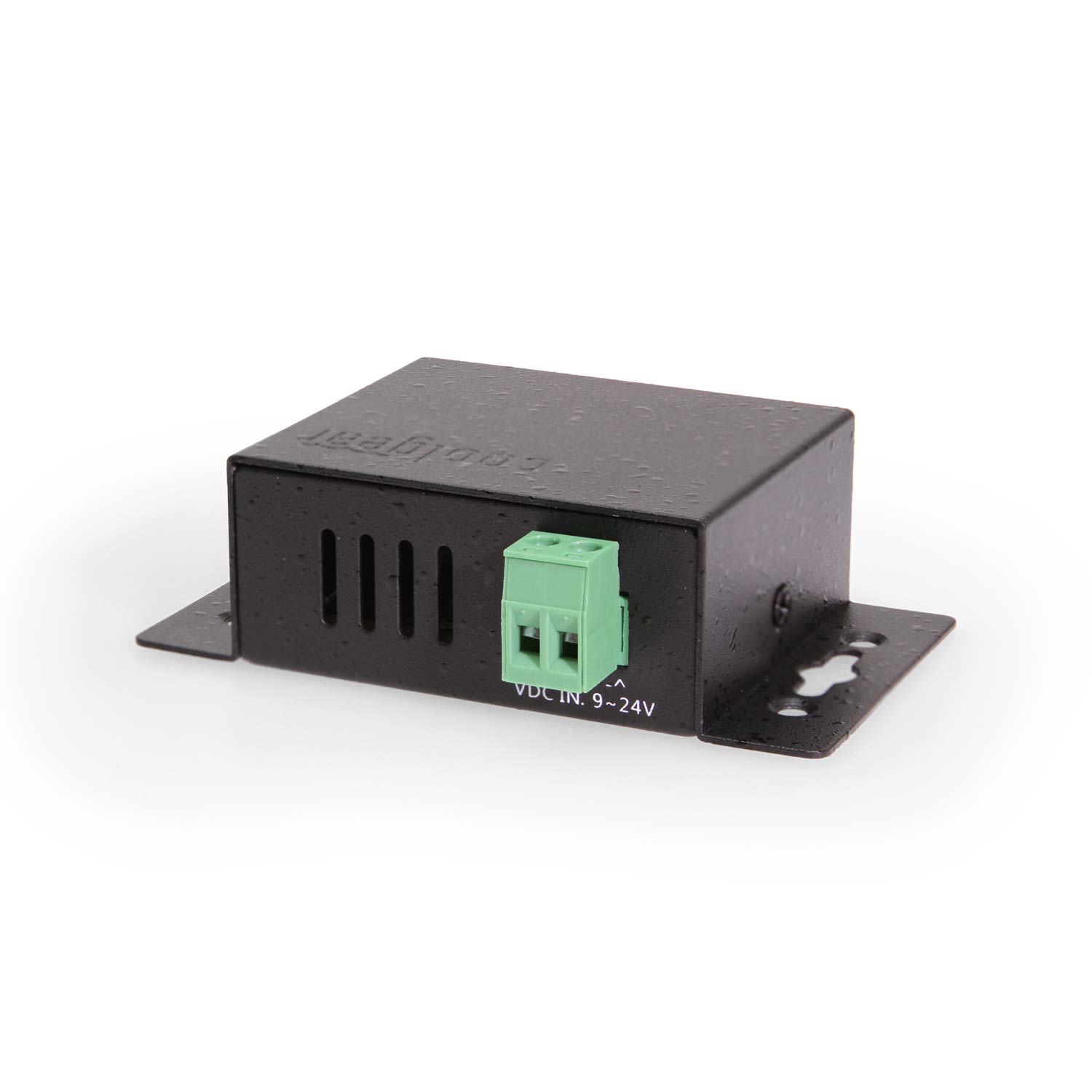

The USB PD adapter supports full-featured PD profiles on USB 3.1 Type-C Port 27 Watt maximum output. It connects to a standard 12V automotive power input or industrial 24V power input via 2-Pin Phoenix Connector. The USB PD adapter with type C port supports up to 27 Watts of PD Power, 5~12 Volt profiles and compatible with ALL USB power delivery devices.

Features:

  • Wide range input voltage +12~28V DC, ideal for 12V DC and 24V DC Vehicle applications

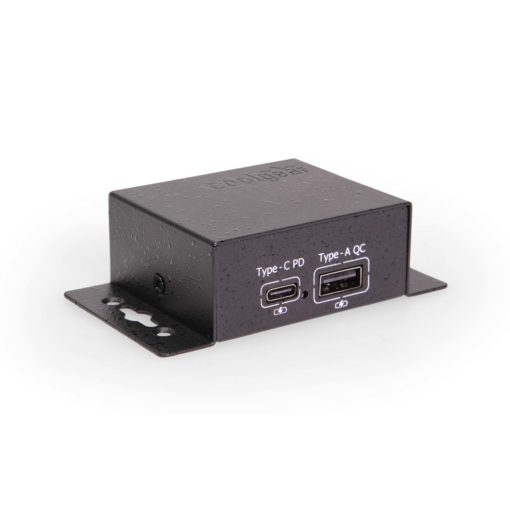

  • Dual USB Port Industrial Charger PCB: USB C (Type-C) port with power delivery + USB-A Port
  • USB-A provides up to 15W of charging power & USB-C with Power Delivery that enables up to 27W with Fast Charge Protocols of PD3.0 / PPS / PD2.0, QC3.0 / QC2.0, FCP, AFC Auto Sense to give Maximum Power to Connected Device. (simultaneous charging not supported)
  • Supports input over voltage and under voltage protection.
  • Supports output short circuit, over current and over temperature protection.
  • ESD 4KV, DC withstand voltage of 40V

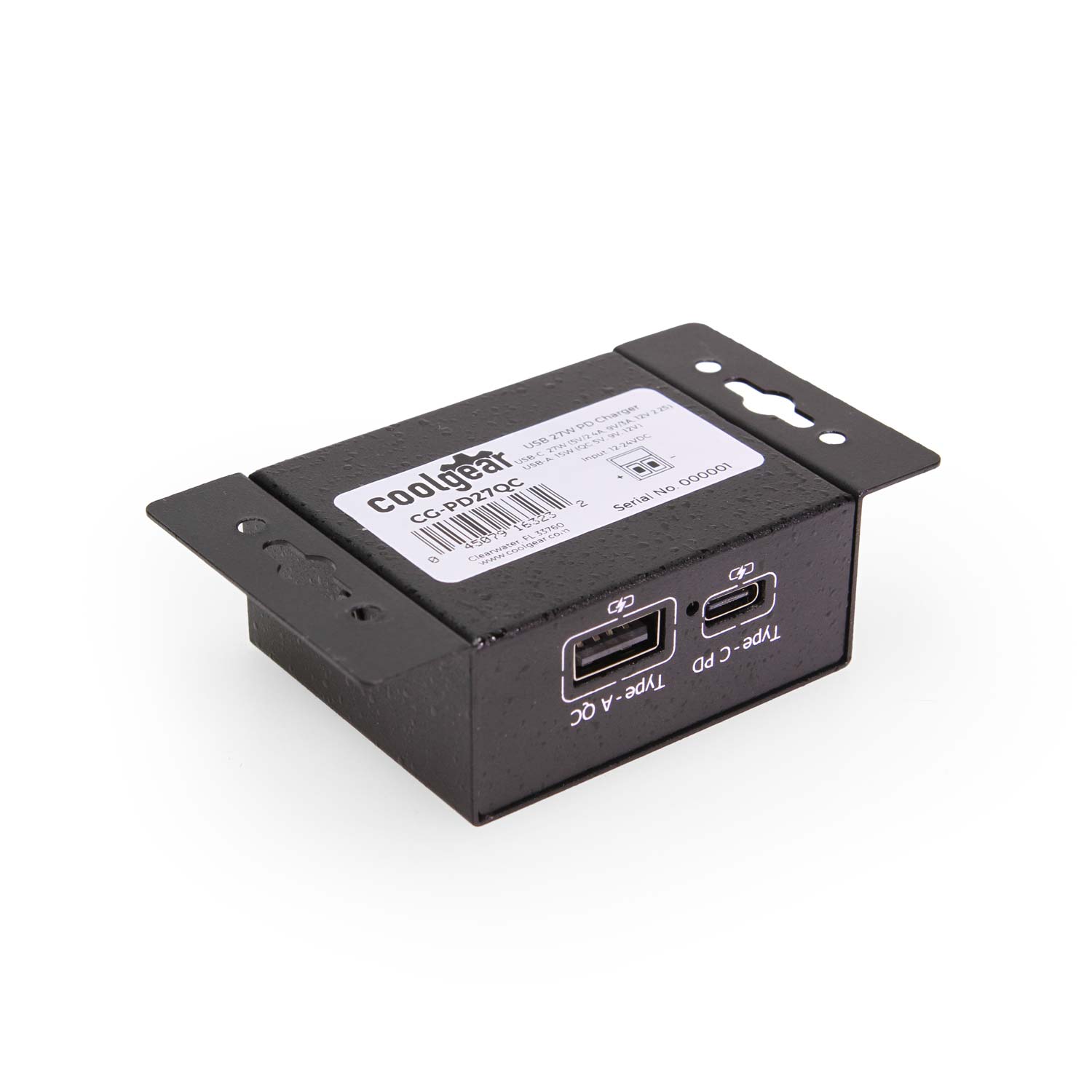

  • Integrated mounting flanges allow secure installs on walls and other surfaces.

Package Contents:

  • ChargeIT! Dual Port USB-C Low Power Charger
  • 2-Pin Terminal Block



Specifications

Product Specifications

Power
Input Voltage

+12~28V DC

Charging Protocols

Apple 2.4A, Dedicated Charging Port (DCP), Samsung

Voltage Profiles

5V/2.4A, 9V/3A, 12V/2.25A

Physical Characteristics
Color

Black

Item Dimensions (L × W × H)

3.48 × 2.00 × 1.03 in.

Mounting Style

Surface / Wall Mount

Material of Construction

Galvanized Steel

Product Information
Warranty

1 year from date of purchase

Performance & Safety
ESD Protection

4KV Surge Protection

Over Current Protection

Yes

Over Voltage Protection

Yes

Other Data
UPC

045079163232

Weight

0.281 lbs

Dimensions

3.48 × 1.99 × 1.03 in

UPC: 045079163232
Support

Product Documentation & Drivers


Need drawings, CAD files, or other compliance documentation? Click HERE
