IEEE 1394B 3-Port Mini PCIe Card Kit
Model No.
CG-3P1394BMP
3-Port IEEE 1394 Mini Kit
Supports 2 ports with 1394B (FireWire 800) and 1 port 1394A FireWire 400) and up to 800Mbs Data transfer rates.
- OS Support for: Win XP SP2, 200, 2003, 2008, VISTA, and Win 7 – Mac OS 10.X
- Supports up to 63 1394a or 1394b devices
- TI 1394b Native PCIe Chip built-in
$54.95
Model No. CG-3P1394BMP
Out of stock
Description
Add FireWire 800 to your System
The IEEE 1394B FireWire 800 mini PCI Express card promises development of innovative high-performance devices and applications.
It doubles the throughput of the original 1394A technology and dramatically increases the maximum distance of FireWire connections. Future support for many new types of cabling.
Mini PCIe IEEE 1394B Kit Features
- Supports MIni PCIe form factor
- PCI Express base specifications 1.0a compliant, 2.5 Gbps (250Mbytes/sec) transfer rate
- Fully IEEE1394 OHCI compliance

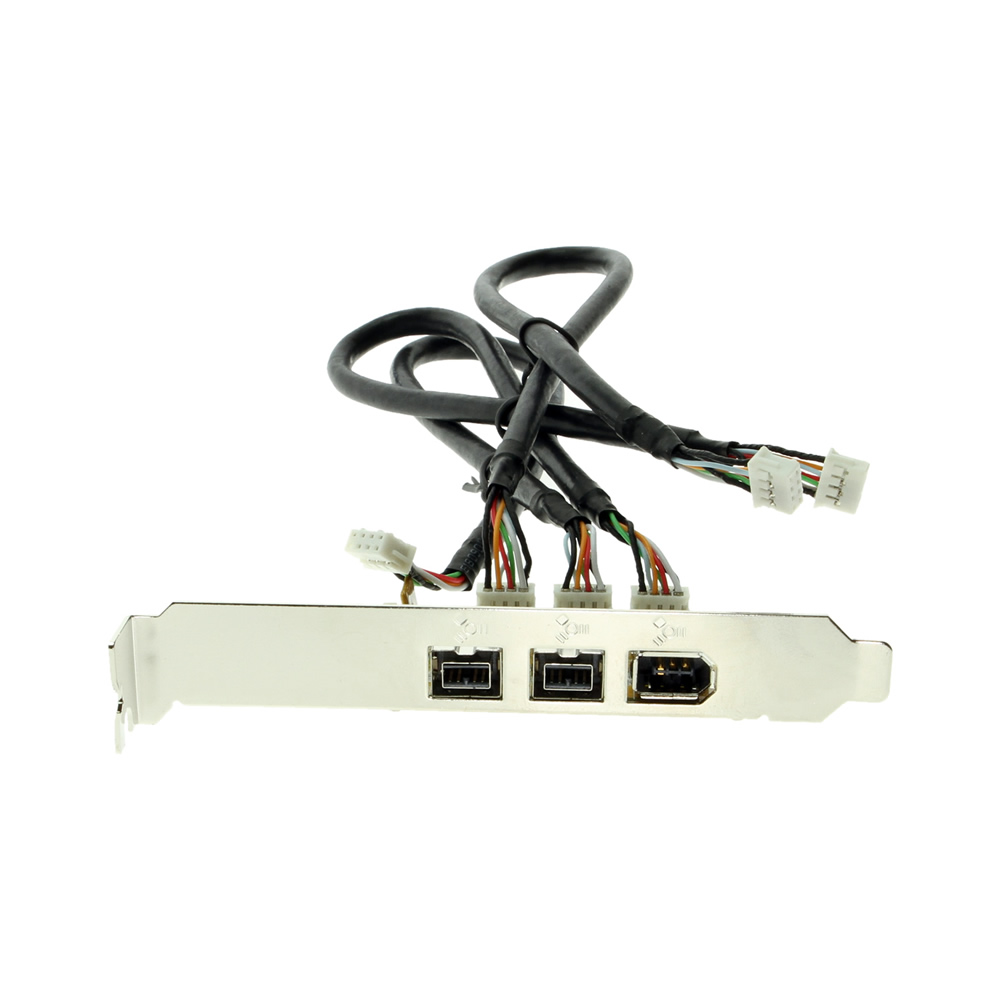

- Two 9-pin (1394B) and one 6-pin (1394a legacy) external connectors with the adapter board
- Up to 800Mbits/sec IEEE 1394B FireWire 800 transfer rate
- Supports bus 12V power with the power cable
- Supports Win XP SP2, 200, 2003, 2008, VISTA, and Win 7 – Mac OS 10.X
Note: Only supports 1394a made by the bundled drivers in the OS.

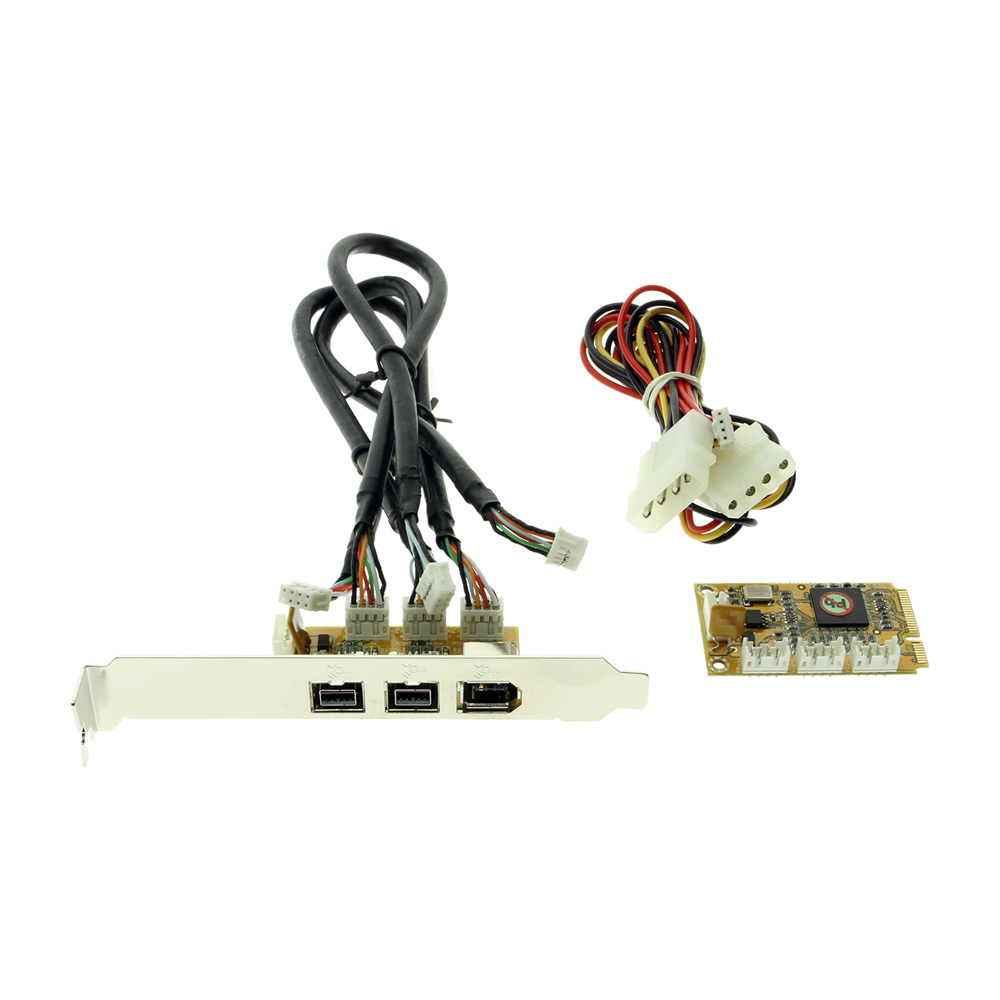

Package Contents

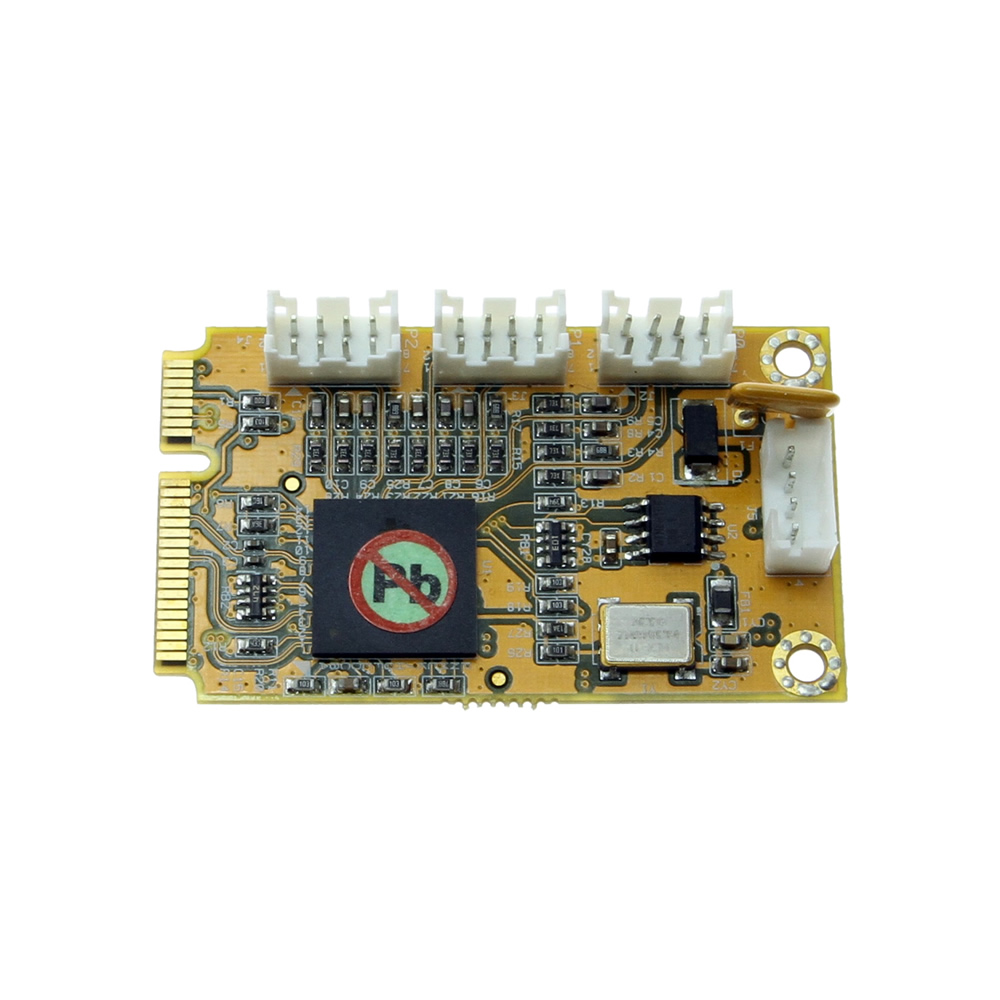

- 1x Mini PCIe card
- 1x IEEE 1394B adapter board

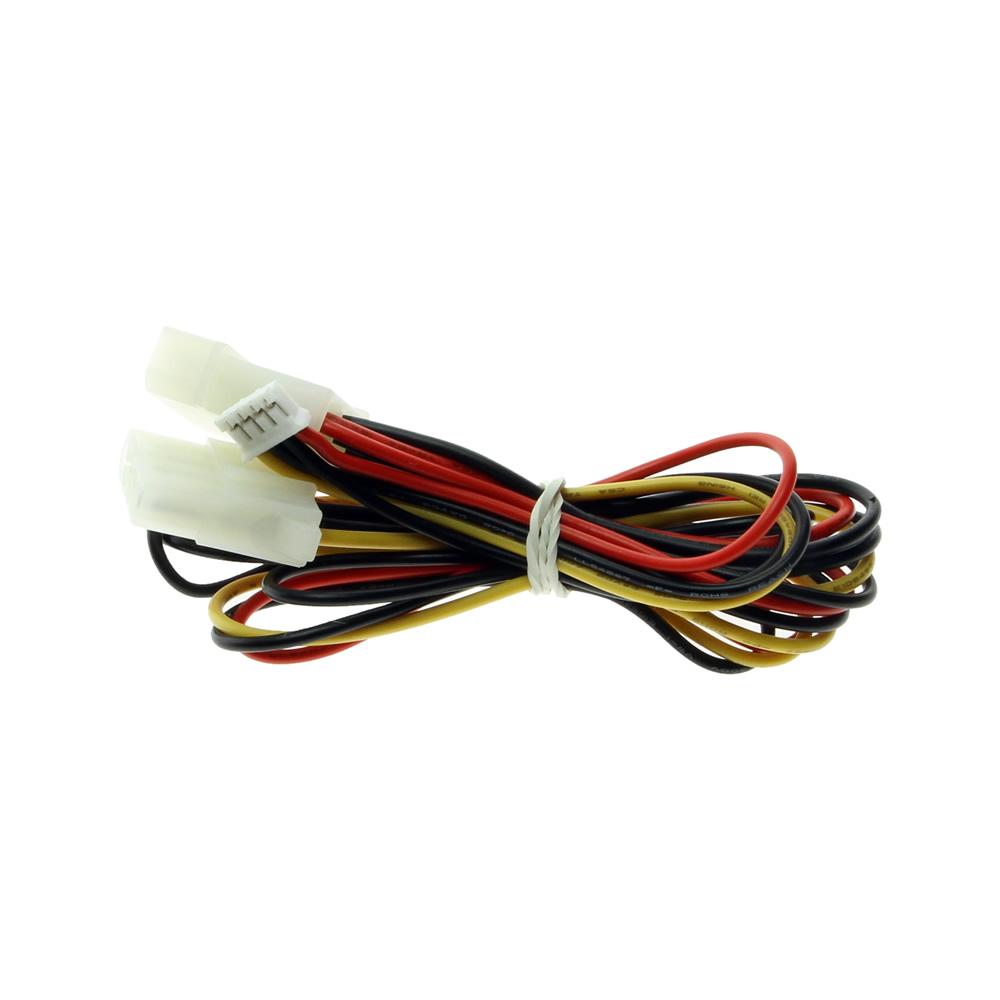

- 1x Power cable
Specifications
Product Specifications
| Identifier |
| ||||||
|---|---|---|---|---|---|---|---|
| Other Data |
|
Support
Product Documentation & Drivers
Need drawings, CAD files, or other compliance documentation? Click HERE
