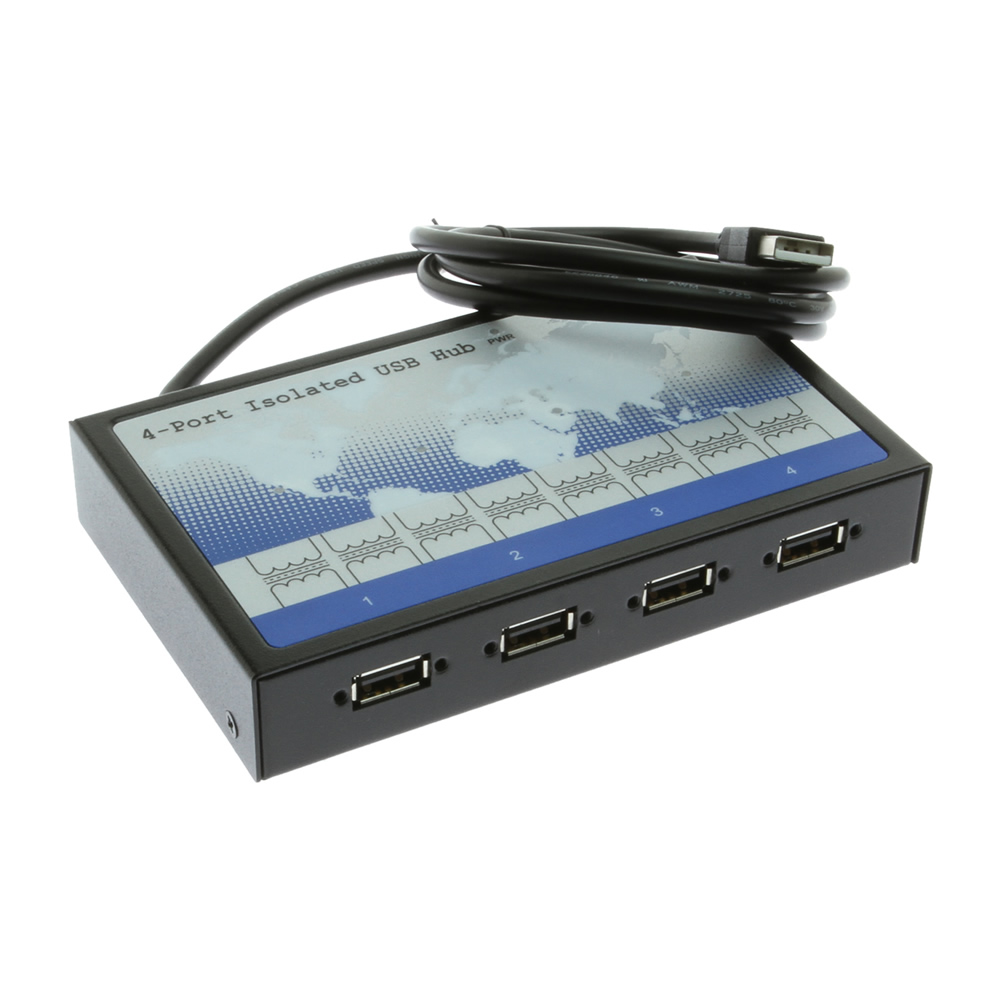

USB 2.0 4 Port Isolated Full-Speed Hub

This isolated hub is a rugged, industrial-grade 4-port full speed USB 2.0 hub and expands one USB port into four optically isolated USB ports. The USB Hub’s power input is designed with a diode bridge circuit, and you don’t need to worry about the input DC power polarity when plugging the power connector.

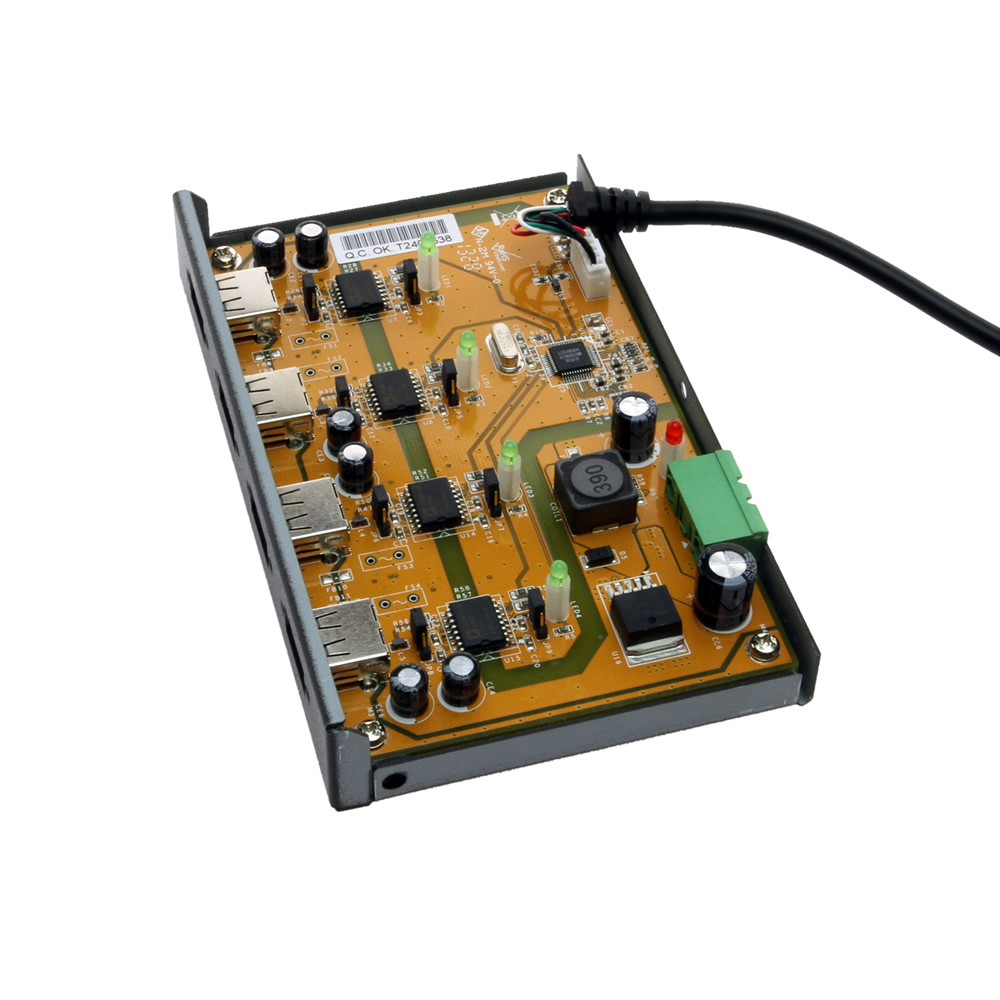

The hub is designed with optical isolation to enhance isolation protection up to 3000 VDC between upstream and four downstream ports to prevent harmful voltage, ESD shock, ground loops and noise. Each USB device connected to the isolated hub can operate independently with individual power management

The USB 2.0 4-port hub is designed for the use in industrial applications and is housed in a DIN-rail mountable metal case with screw holes for lockable USB and power cables.

USB 2.0 4-Port Isolated Hub Features

• Isolates and protects USB peripheral products from a USB host
• Electrical isolation up to 3000 Vrms for each downstream port
• Industrial-grade 4 port USB 2.0 hub in a rugged metal case

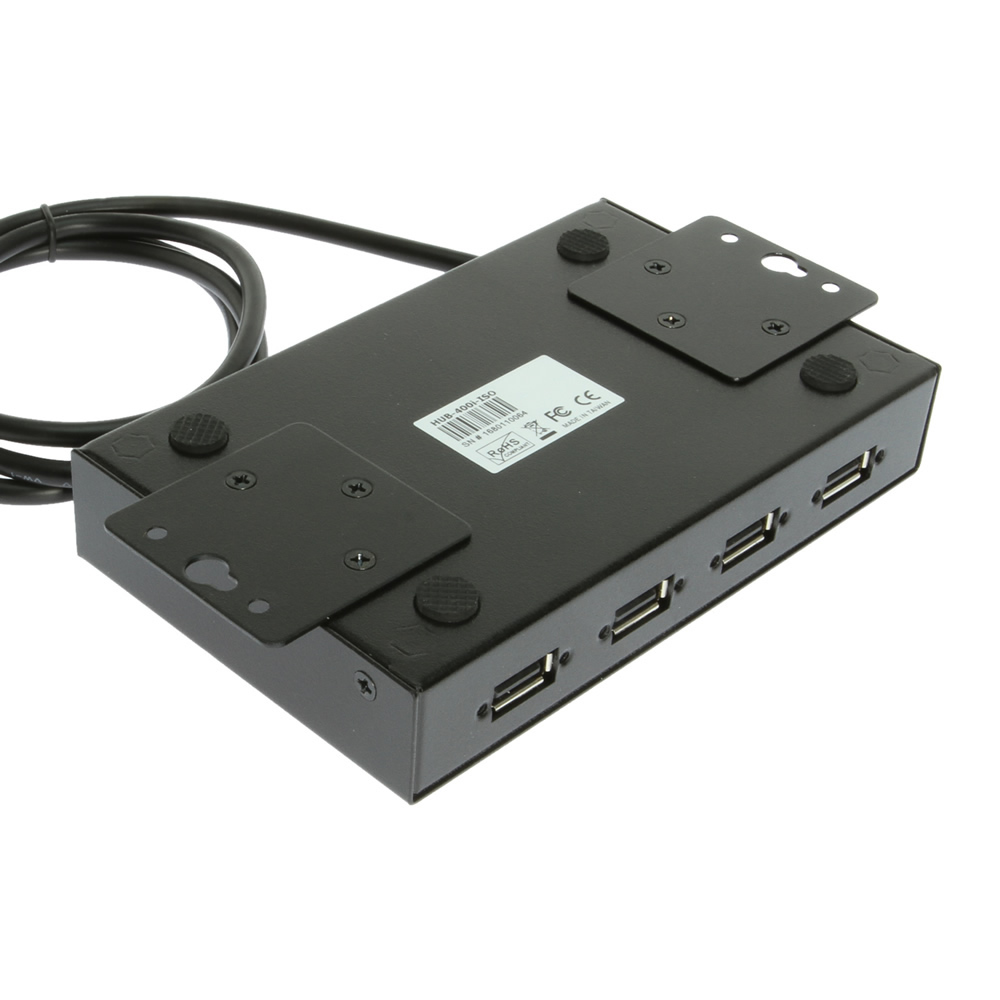

• Suitable for DIN-rail mounting
• Common mode filtering on all data lines
• Each downstream USB port supplies 5V 500mA power for external high-power USB devices
• Individual port power management
• Support USB 2.0 full speed 12 Mbps and USB 1.1 low speed 1.5 Mbps data rate with jumper-selection
• No software or drivers required
• Short circuit and over current protection
• LED for power and USB status indication

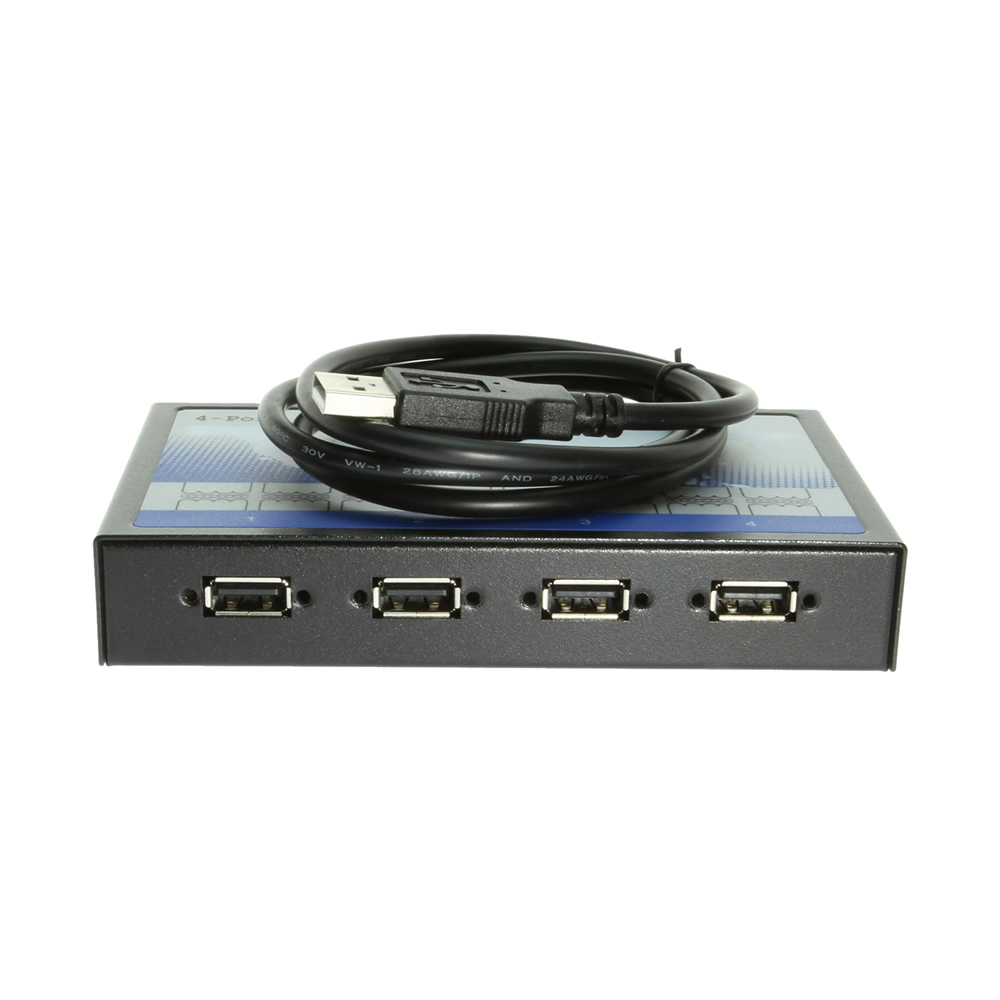

• All USB connectors with screw holes for lockable USB cable

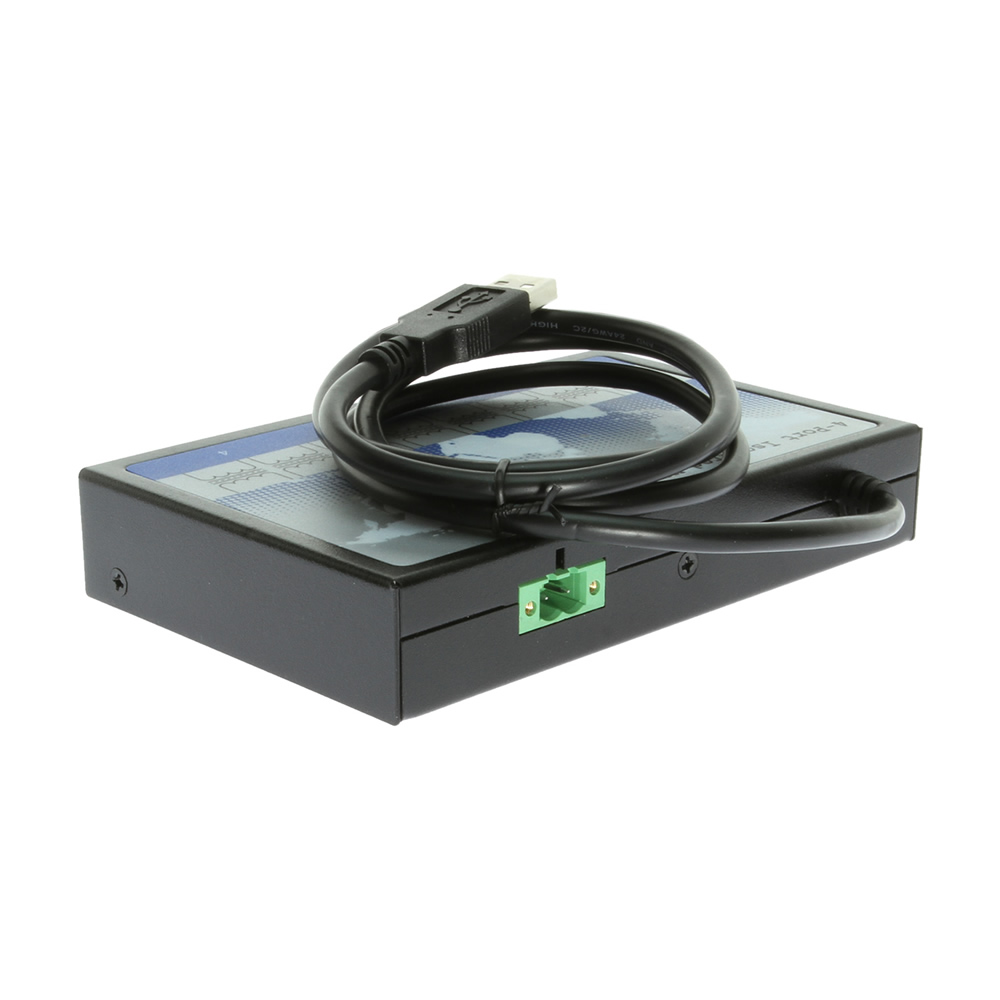

• Input power connector with screw holes to lock the power cable
• Power 9 ~ 30V DC or AC power input. An external power adapter included
• With diode bridge circuit to avoid wrong polarity input DC power
• Wide ambient temperature operation 0°C to 60°C (32°F to 140°F)

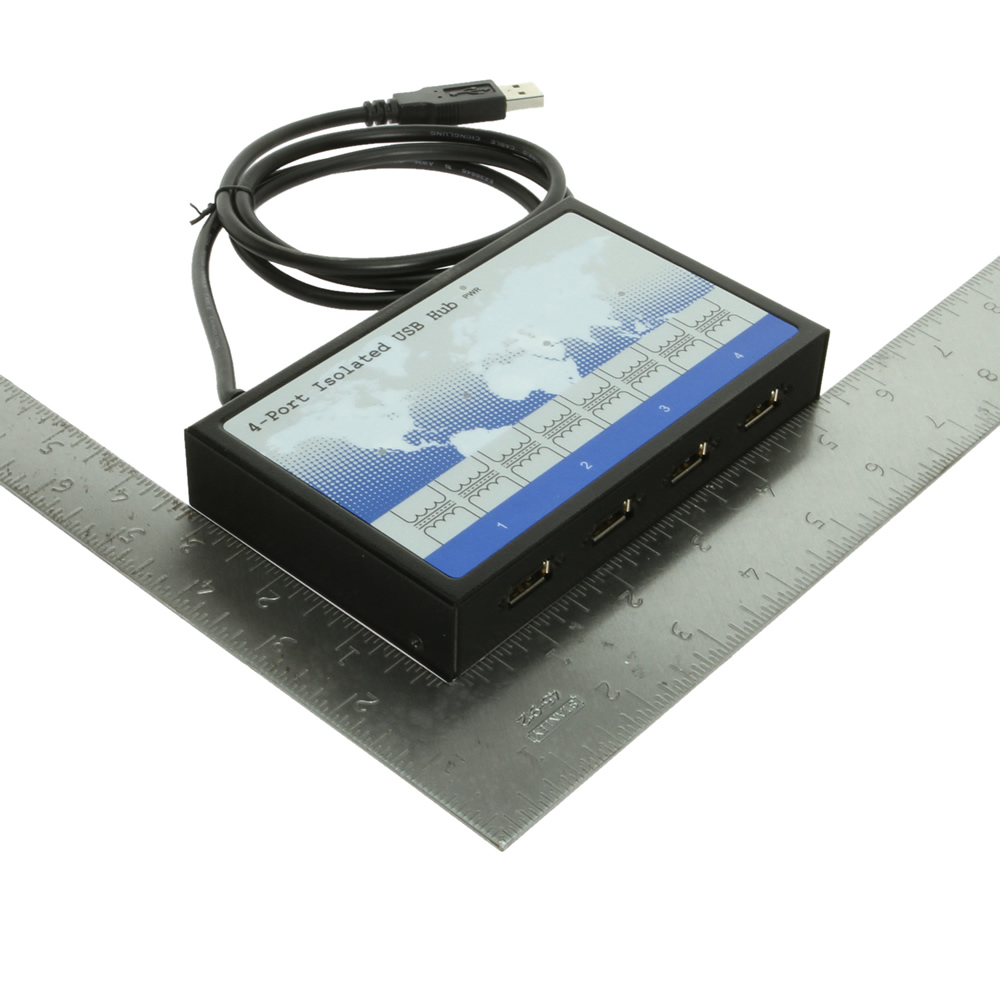

• Dimensions: 5.312″(L) x 3.312″(W) x 1.00″(H)
• CE, FCC approval

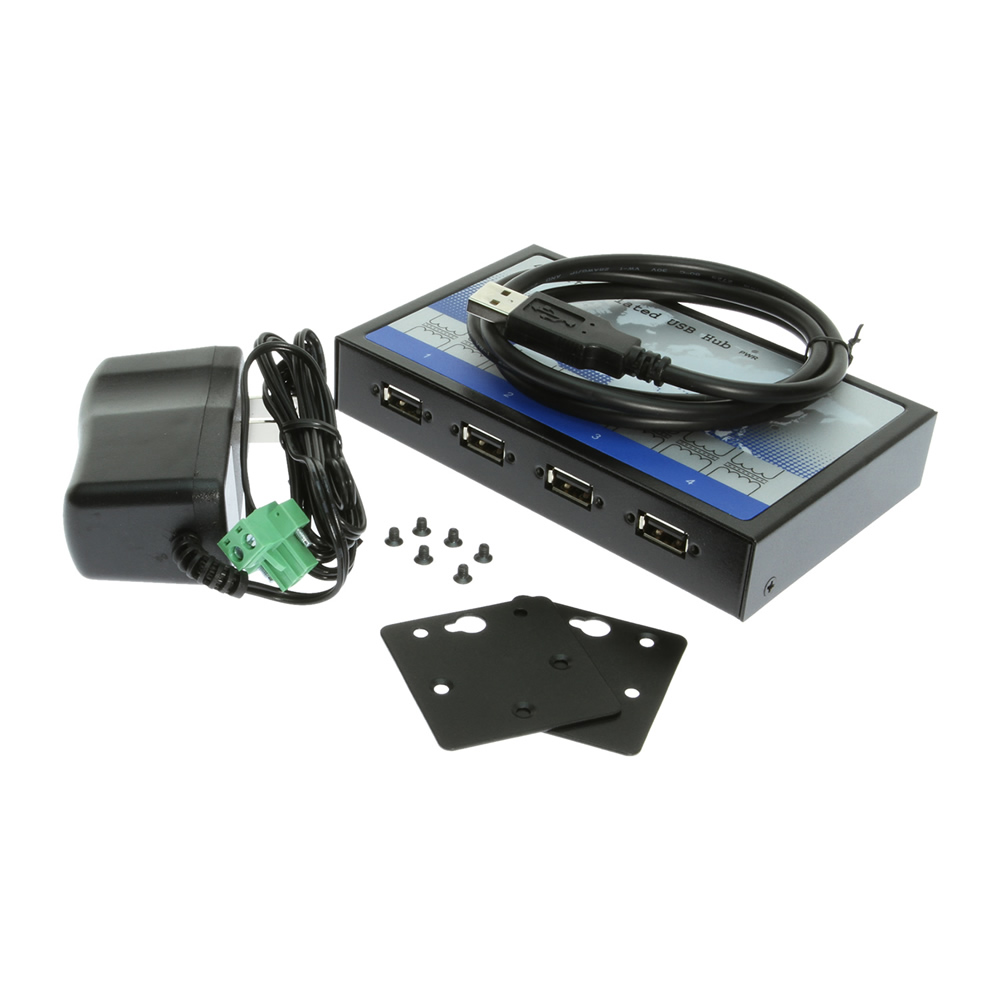

Package Contents

• USB 2.0 4-Port Isolated Hub
• Power adapter
• Din-rail brackets
• Driver Disk

Product Specifications
