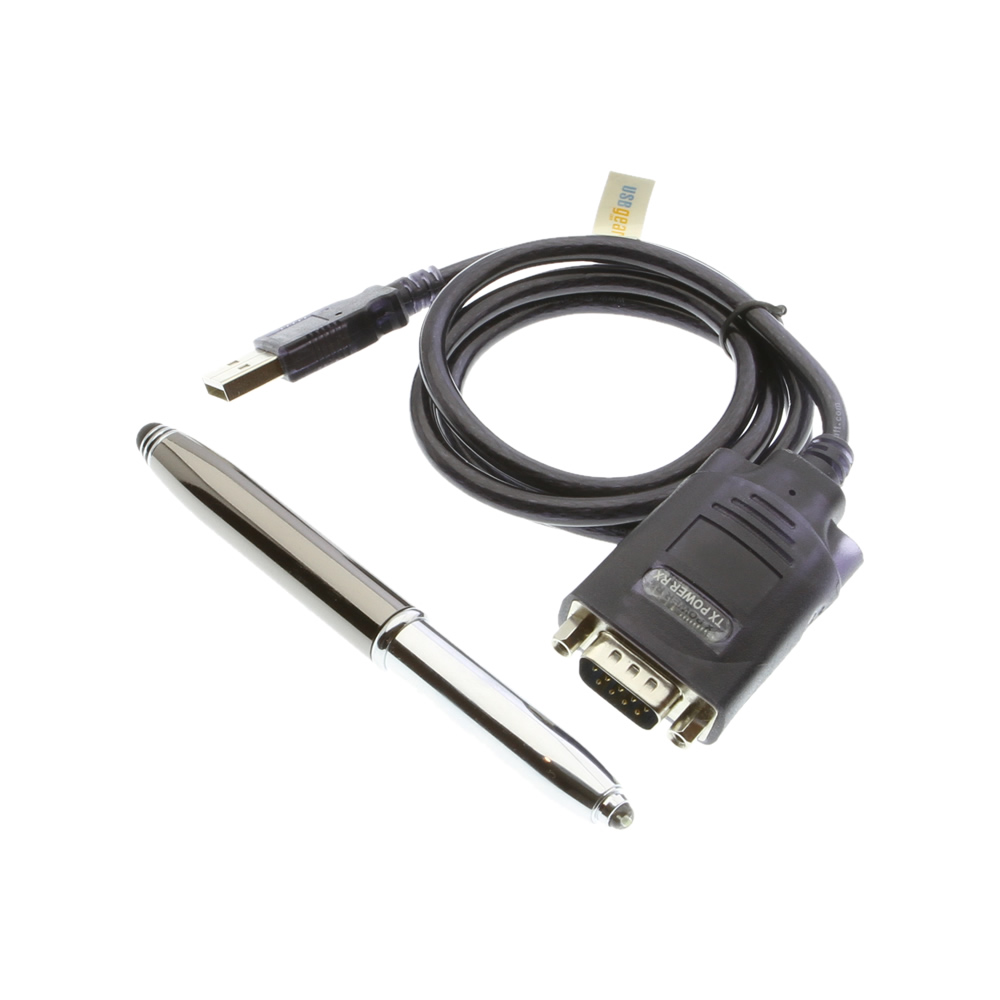

36in. USB to DB-9 Serial RS-232 High Speed Adapter w/ FTDI Chipset

RS-232 | FTDI

  • Expand Your Serial Capabilities: Connect your legacy 9-pin serial device through a USB-A port to add legacy functionality to newer technologies with no serial port connections.
  • Safe Connections: Designed with a unique system load reduction feature, the Mini USB to Serial Adapter also offers 10kV surge protection for connected devices.
  • Plug-&-Play: The adapter’s power is drawn from a USB connection for ease of access and is compatible with Windows (up to Win 11), Mac OS, and Linux.
  • COM Retention: COM Ports are fully configurable, and after reboots, port assignments are preserved.
  • Upstream: 1 USB port, Type A Male Connector
  • Downstream: 1 Male DB9, w/ nuts
  • LEDs: Power, TX / RX

$27.95

Out of Stock

Model No. USBG-RS232-F36

Software & Drivers

Quick Links:

Description

USB to DB-9 Serial adapter cable connection to laptop image

Introduction:

This converter cable and the PC interface cable for your unit, allow you to transfer maps, waypoints, routes and tracks between MapSource and your GPS devices.

The CG-RS232-F36 USB to DB-9 Serial adapter is perfect for Laptop/Desktop/Mobile Computer users that require an RS-232 connection without the extra cable length. This cable features RX/TX and Power LEDs and utilizes the FTDI Chipset. Want to connect your GPS to your PC but don’t have a 9-pin serial port connection? This USB to DB-9 Serial adapter cable will get you hooked. Using this converter cable and the PC interface for your application, you can transfer maps, waypoints, routes and tracks between MapSource and your GPS.

Connect any serial device to a USB port with this HP USB to Serial DB9 Adapter. It features USB Type A to 9-pin serial adapter! This USB to Serial Cable provides you the simplest way to attach your Notebook or Desktop computer to a serial modem, mouse or PDA cradle. It features Plug and Play capabilities for your peripherals such as: PDA Cradles, modems, mice, card readers, barcode readers, label writers, digital cameras, security systems, fingerprint verification and more.

Features:

  • 36 inch USB Cable length
  • Adds one RS-232 serial port by connecting to a USB port
  • Compact size cable type converter with cable length of 92 cm
  • Installed as standard Windows COM port
  • Full RS-232 modem control signals and hardware/software flow control
  • RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
  • High speed serial port with the baud rate up to 921.6K bps
  • Non-standard baudrates supported
  • LED status indicators for TxD and RxD for easy port monitoring and diagnostic
  • Serial port protected with surge protection of 10KV
  • Powered by USB port, no external power adapter required
  • Easy plug and play installation and RS-232 device connection
  • COM port number assigned can be changed to any COM port number required
  • Works with USB 1.1 & 2.0 host port
  • Supported by Windows 11

OS Support:

  • Windows 7, 8, 10, and Windows 11
  • Linux and Mac OS 10.X

Package Contents:

  • 32in USB to DB9 Serial adapter (FTDI Chip)
  • Driver Disc
Specifications

Product Specifications

Power
External Power Required

No

Compliance
Country of Origin

Taiwan

Mechanical
Color

Black

Length

3ft

Ports

1 Serial Port

Material of Construction

Plastic

USB
USB Type

USB 2.0

Screw Lock Compatible

Yes

Serial Attributes
RS Signals

TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND

Serial Standards

RS232

Baud Rate

921.6K bps

Data Bits

7, 8

Parity

None, Even, Odd, Mark, Space

Stop Bits

1, 2

Flow Control

Hardware (RTS, CTS), XON/XOFF

Software
OS Support

Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8

Product Information
Warranty

1 year from date of purchase

Hardware
Chipset

FTDI

LED Indicators

Power, TX / RX

Other Data
Connector

DB9 Male w/ Nuts

Chip Model

FT232BL

Weight

.3 lbs

Dimensions

7 × 4 × 1.5 in

UPC: 729440691325
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “36in. USB to DB-9 Serial RS-232 High Speed Adapter w/ FTDI Chipset”

Pin-Out

DB9 RS-232 Pin-Outs

DB9 RS-232 Pin-Out Diagram
DB9 RS-232 Pin-Out Chart
Accessories

Accessories

The 36 inch USB to DB( FTDI serial adapter has certain accessories that work with it. These accessories are what you can order if needed.

RS232 Male to Female Serial Data Cable Complete your serial data connection with this 5ft. RS232 DB-9 Male to Female data cable for fast reliable…

Model# 9DBMF5FT

$2.95

In stock

Add to cart
