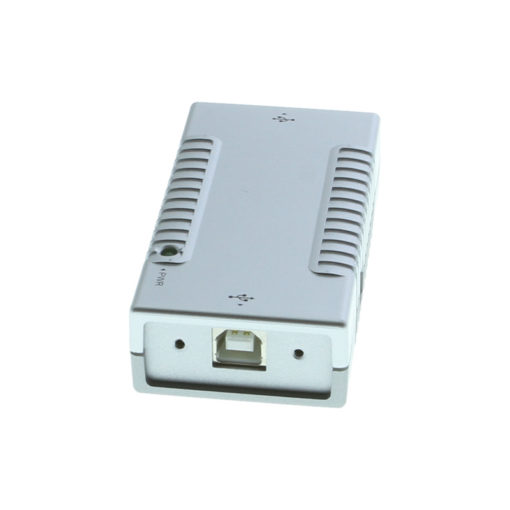

USB 2.0 High Speed Isolator

USB 2.0 Isolation Adapter

Our new USB 2.0 Isolation Adapter is the first of its kind to fully support USB 2.0 480Mbs data transfer speeds and remain backward compatible with USB 1.1. Includes a 6ft USB.2.0 screw lock mechanism cable for connection.

  • Supports 480Mbps, 12Mbps and 1.5Mbps Speed
  • Supports Self-powered (downstream port domain) and Bus-powered Modes
  • Supports DC Jack to Improve Downstream Domain USB Bus Power
  • Supports Wall Mounting and Optional DIN RAIL Mounting Kits

$219.95

Out of Stock

Model No. MG-14020IS

Quick Links:

Description

CoolGear has developed the only true high speed 480Mbps USB 2.0 Isolation adapter currently in the market! Where other USB isolation adapters have had a maximum transfer rate only in the full speed range of 12Mbps, this adapter utilizes full USB 2.0 capabilities and is backward compatible with USB 1.1.

This USB 2.0 isolator adapter is compatible with wall and Din Rail mounting kits

The USB 2.0 isolator adapter is fully compliant with USB 2.0 and provides a unique feature to work in the bus-powered mode without an external AC power adapter, which makes It’s very convenient for light power consumption USB devices. The external DC jack is used for self-powered mode if you need more power on the downstream port.

Product Features

  • Compliant with USB 1.1 and USB2.0 High-speed
  • Supports High-speed, Full-speed and/or Low-speed
  • Packet Protocol Sequencer for Endpoint 0/1
  • Switch Selectable for Low-speed and Full-speed Operation Modes
  • Provides 1 Downstream Facing Port
  • Supports Screw-Lock USB Mechanism
  • Supports Wall and DIN RAIL Mounting Kits
  • Up to 480Mbps USB2.0 High Speed Data Rate
  • Supports 2,500 Vrms Isolation Between Upstream and Downstream Facing Port
  • Supports Self-powered and Bus-powered Mode
  • Buit-in Power LED Indicator
  • Supports DC Jack for Downstream USB Bus Power

Isolator Adapter Specifications

  • Supports USB 1.1 and USB2.0 High-speed
  • Provides 1 Downstream Facing Port
  • Supports 2,500 Vrms Isolation
  • Supports High-speed, Full-speed and Low-speed Data Rate Automatically
  • Supports 480Mbps, 12Mbps and 1.5Mbps Speed
  • Supports Screw-Lock USB Mechanism
  • Supports Self-powered (downstream port domain) and Bus-powered Modes
  • Supports DC Jack to Improve Downstream Domain USB Bus Power
  • Supports Wall Mounting and Optional DIN RAIL Mounting Kits
  • Supports Power LED Indicator

Supporting USB devices include but aren’t limited to keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, pen drives, virtual reality helmet, modem, PBX and many more…

Environmental

  • Operating Temp.: 0 to 55°C (32 to 131°F)
  • Storage Temp: -20 to 85°C (-4 to 185°F)
  • Operating Humidity: 5 to 95% RH

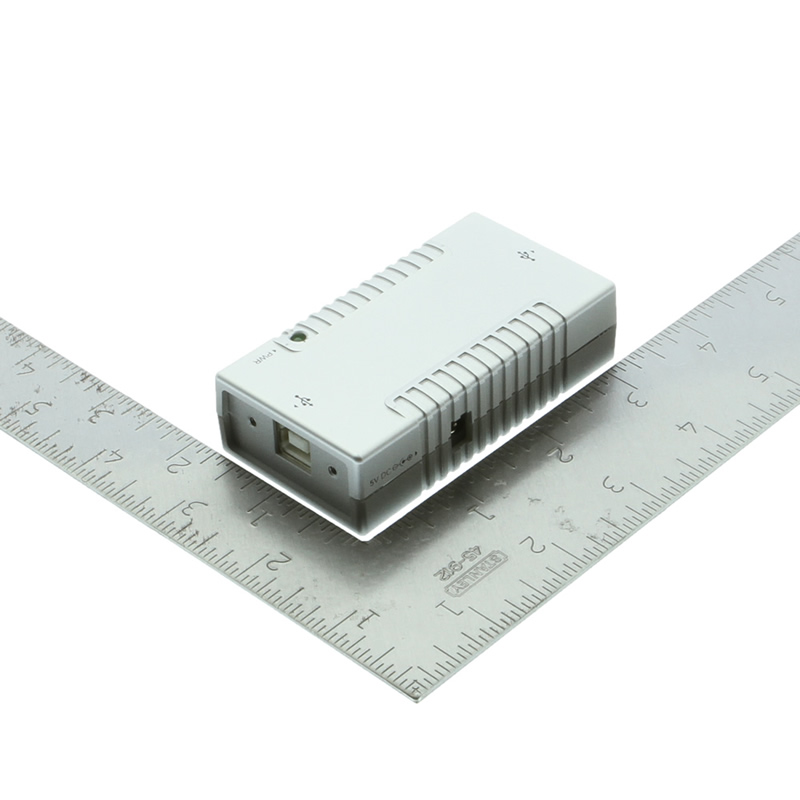

Form Factor Dimensions

3.24”(L)x1.74”(W)x0.87”(H) (8.23 x 4.42 x 2.22 cm)

Specifications

Product Specifications

Identifier
UPC

736983902337

Product Type

Adapters > Cables > USB > USB 2.0

Mechanical
Color

Silver

USB
USB Type

USB 2.0

Isolated/Surge Protected

Yes

Screw Lock Compatible

Yes

Performance
Isolated/Surge Protected

Yes

Weight

0.512 lbs

Dimensions

9.00 × 6.250 × 1.750 in
