88watt USB Charger Four USB-A TypeOne USB-C Port
Model No.
CG-UC4AQC3
With an industrial-grade design, the USB Five Port charger incorporates both Type-A and Type-C charging ports. The USB Charger supports QC2.0/3.0 quick charging specifications and voltage protection protocols.
- Compliant with Qualcomm QC2.0/3.0 quick charging specifications.
- Provides four USB Type-A and one USB Type-C port
- Support BC1.2, Apple, Samsung
- Flat surface mountable
$32.95
Model No. CG-UC4AQC3
Out of stock
Product Documentation
Description
Industrial-grade 88watt USB 5 Port Charger Only
Coolgear’s USB Charger only features an industrial-grade chassis with 4 USB Type-A and 1 USB-C charging port. It is designed to handle the harsh environments of industrial and commercial charging applications. The USB 5 port charger is powered by either 7~28V DC barrel connector or the preferred method a 2-wire phoenix connector plug (power adapter sold separately). Supporting a wide range of voltage input from 7 – 28V, the USB Dual Type-charger is compliant with battery charging specification 1.2.
5 Port USB Charger Features
- Compliant with Qualcomm QC2.0/3.0 quick charging specifications.
- Provides four USB Type-A and one USB Type-C port
- USB Type A ports can provide up to 3amps per port
- PD 2.0 5V-2.39A/9V-2.39A/12V-2.31A Profiles Supported.
- 4 Type A 5V x 15watts = 60 watts + 1 USB Type C PD 28watts = 88 watts total Combined Power output
- Flat surface mountable
- Over Voltage Protection
- Under Voltage Protection
- Over Temperature Protection
- Support BC1.2, Apple, Samsung
- Support MTK PE+1.1 and MTK PE+2.0
- Support Huawei Fast charge: FCP and SCP
- Support Samsung fast charge : AFC
- Support Spreadtrum fast charge : SFCP
- Operating Temperature: 10 to 60°C
- Humidity: 5-90%
- Item Dimensions: 3.76in(L) x 2.24in(W) x 1.27(H)
- Recommended power input 12V and up

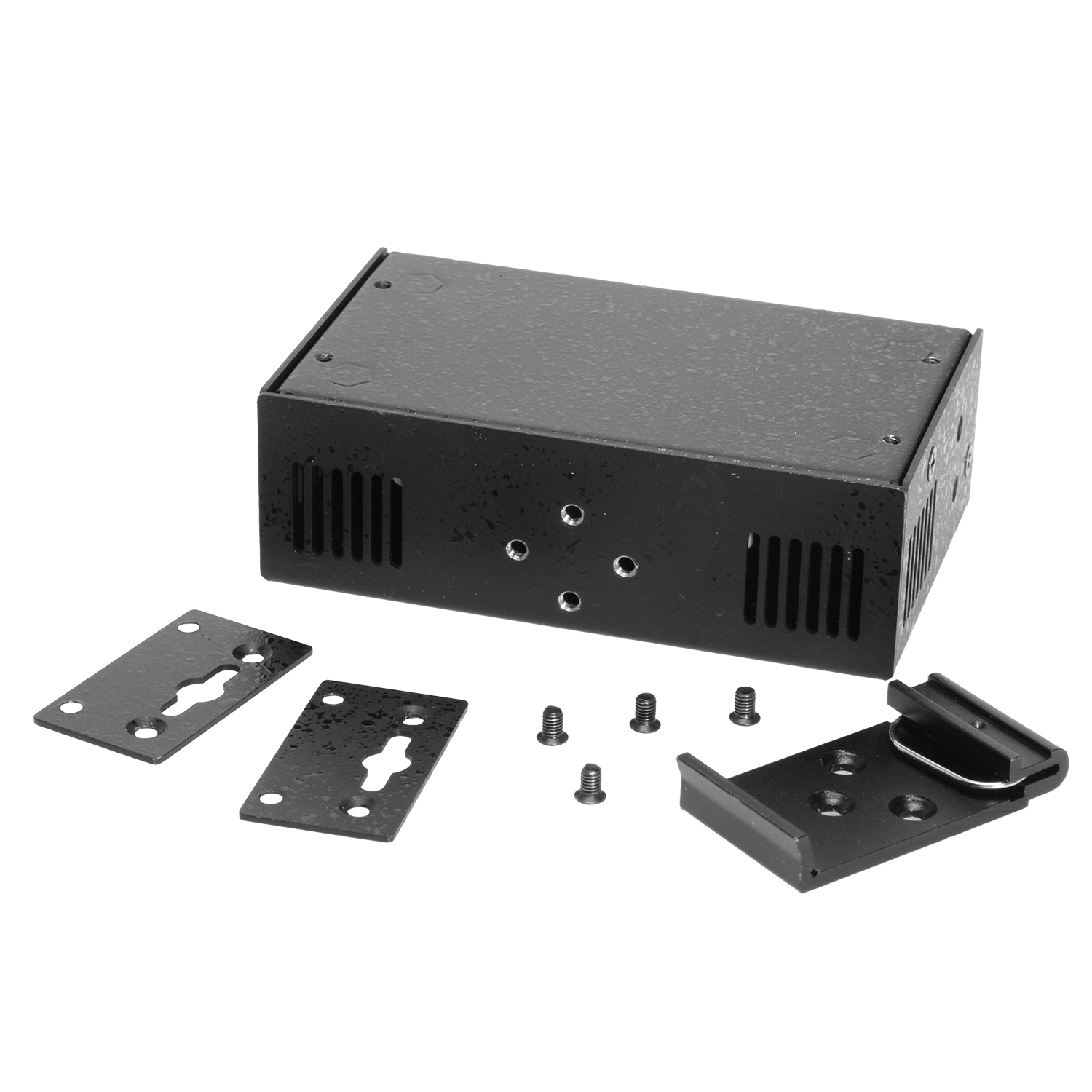

Package Contents
- 5 port mountable charger
- DIN Rail Bracket
- Optional Surface Mounting Brackets
- Screw Pack
*Surface Mounting screws not included.
Specifications
Product Specifications
| Identifier | Product Type: Adapters > USB C Adapters > Power Delivery |
|---|---|
| Power | Input Voltage Range: 7 ~ 28V DC Charging Protocols: QC3.0, QC2.0 Charging Downstream Port (CDP): No Dedicated Charging Port (DCP): Yes |
| Compliance | Country of Origin: China |
| Physical Characteristics | Color: Black Item Dimensions (L × W × H): 3.76×2.24×1.27 (LxWxH) Item Weight (Oz.): .56 lbs. Mounting Style: Din-Rail Mount, Surface Mount Ports: 5 USB Ports Material of Construction: Steel Screw Lock Compatible: No |
| Software | OS Support / Compatibility: OS independent – No software or drivers required Managing Software Utilities?: N/A |
| Environmental | Operating Temperature Range: 0C ~ 55C Storage Temperature: -20C ~ 75C Humidity: 5% to 95% RH |
| Product Information | Warranty: One Year |
| Performance & Safety | Max Data Transfer Rate: N/A Over Current Protection: No Over Voltage Protection: Yes |
| Additional Details | Connector: 2-Pin Terminal Block USB Specification: Charging Only UPC: 045079160668 Weight: 1.0000 lbs Dimensions: 3.76 × 4.75 × 1.5 in |
