USB-C PD from DC Adapter

Use the 24V DC to USB-PD adapter to power up your Type C Device with a Legacy power supply/power source.

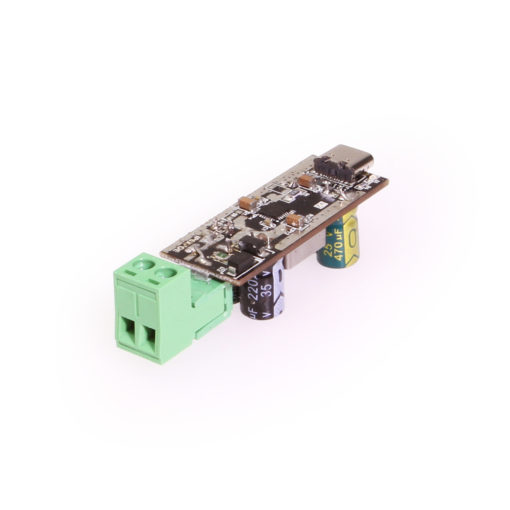

The USB-PD cable from the IP6XPOEv2.2_20V can be connected to any USB Type-C device to power and charge that device. The adapter needs 24V DC to the board, providing USB-C PD output.  Profiles are:  5V/2.39A, 9V/2.07A, 12V/1.51A, 15V/1.27A, 20.0V/1.11A.

Small Compact Size.  Perfect to be integrated into your next project.

Specifications

• USB Type-C PD Profiles: 5V/2.39A, 9V/2.07A, 12V/1.51A, 15V/1.27A, 20.0V/1.11A
• Input: 2 Pin Phoenix Connector  22~24V DC,
• Output: USB-C Female
• Operating Temperature: 10 to 60°C
• Humidity: 5-90%

High efficiency and good thermal Characteristics

• Small size
• Supports CV/CC output
• Very High Efficiency up to 97%
• Variable voltage input: 20V~24V DC
• Over Voltage Protection
• Under Voltage Protection
• Over Temperature Protection
• Supports BC1.2, Apple, Samsung
• Supports Qualcomm QC2.0, QC3.0 (Certificate No.: 4787930010-2)
• Supports MTK PE+1.1 and MTK PE+2.0
• Supports Huawei fast charge: FCP and SCP
• Supports Samsung fast charge : AFC
• Supports Spreadtrum fast charge : SFCP

Product Specifications

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
