2-Port RS-232 / RS-422 / RS-485 Serial to Ethernet Device Server, PoE Powered w/Terminal Block Interface

The MSD-SRP2XM-TBPRO is a multi-protocol RS-232 and RS-422 / 485 serial device server that is designed to connect RS-232, RS-422 and RS-485 serial devices including POS, barcode readers, sensors, meters, weighing systems, CNC controllers and PLC to an IP-based Ethernet Network. The MSD-SRP2XM-TBPRO provides 2 ports, port 1 supports RS-232 mode only and port 2 supports RS-422 / 485 modes.

$197.95

In stock

Volume Pricing

Units Discount Price
1 - 4 $197.95
5 - 11 3 % $192.01
12 - 24 5 % $188.05
25 - 49 7 % $184.09
50+ 10 % $178.16

Model No. MSD-SRP2XM-TBPRO

Description

The MSD-SRP2XM-TBPRO is a multi-protocol RS-232 and RS-422 / 485 serial device server that is designed to connect RS-232, RS-422 and RS-485 serial devices including POS, barcode readers, sensors, meters, weighing systems, CNC controllers and PLC to an IP-based Ethernet Network. The MSD-SRP2XM-TBPRO provides 2 ports, port 1 supports RS-232 mode only and port 2 supports RS-422 / 485 modes.

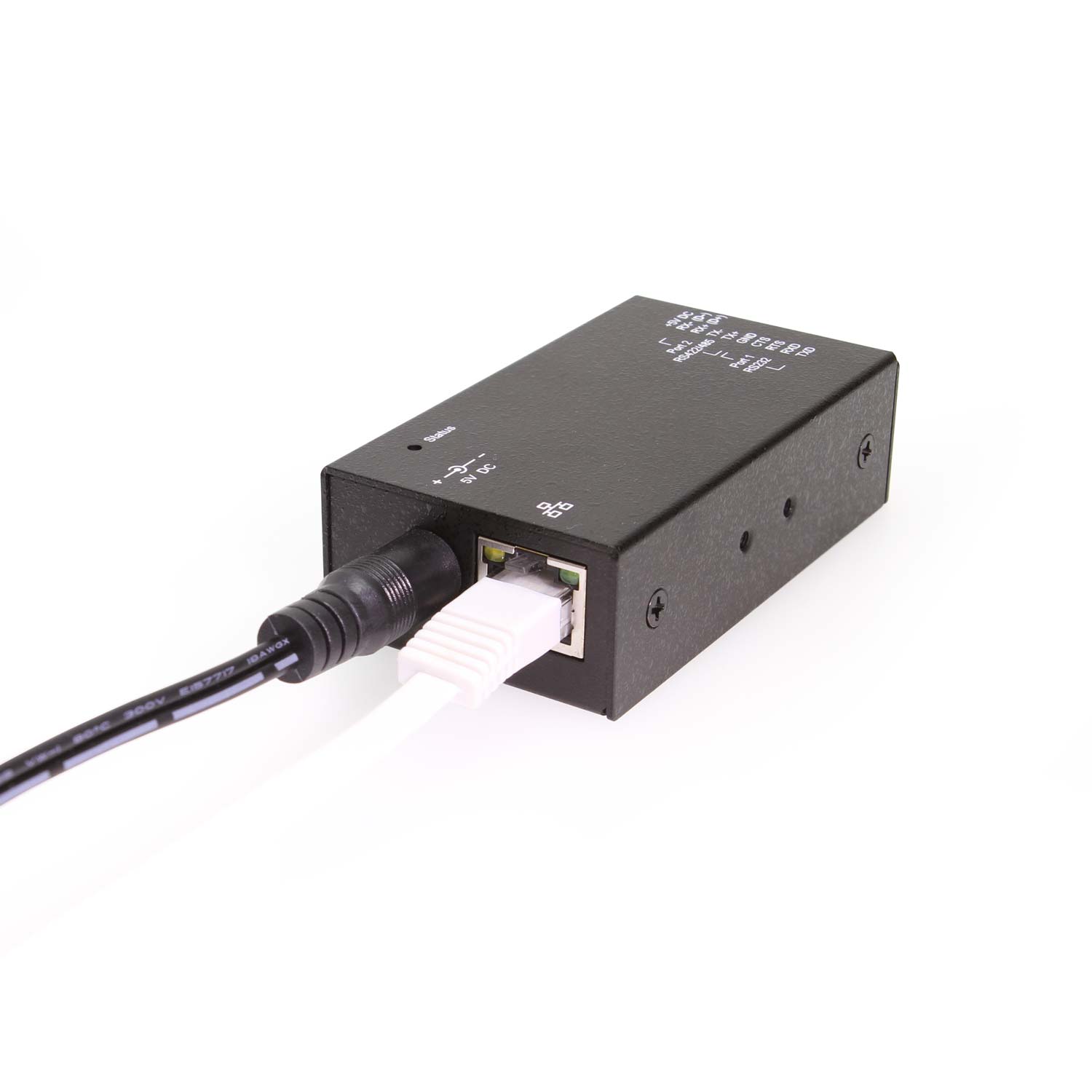

The MSD-SRP2XM-TBPRO extracts power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. In addition, the unit can be powered by the included 5V DC Power Supply.

The serial devices are connected to Ethernet and available on the Internet for sharing, configuring remotely via the rich Network Protocols such as TCP Server, TCP Client, UDP, VCOM, Serial Telnet, RFC2217, Remote-Pair-Master-Slave, Modbus RTU.

To be backwards compatible with the legacy serial device running the existing COM port application software, the MSD-SRP2XM-TBPRO provides a Virtual COM port redirection driver (VCOM) migrating your serial application perfectly without modifying the software.

Moreover, with the Remote-Pair-Master-Slave mode, serial devices can communicate to each other via a peer-to-peer mode without any intermediate PC nor conversion software.

Features:

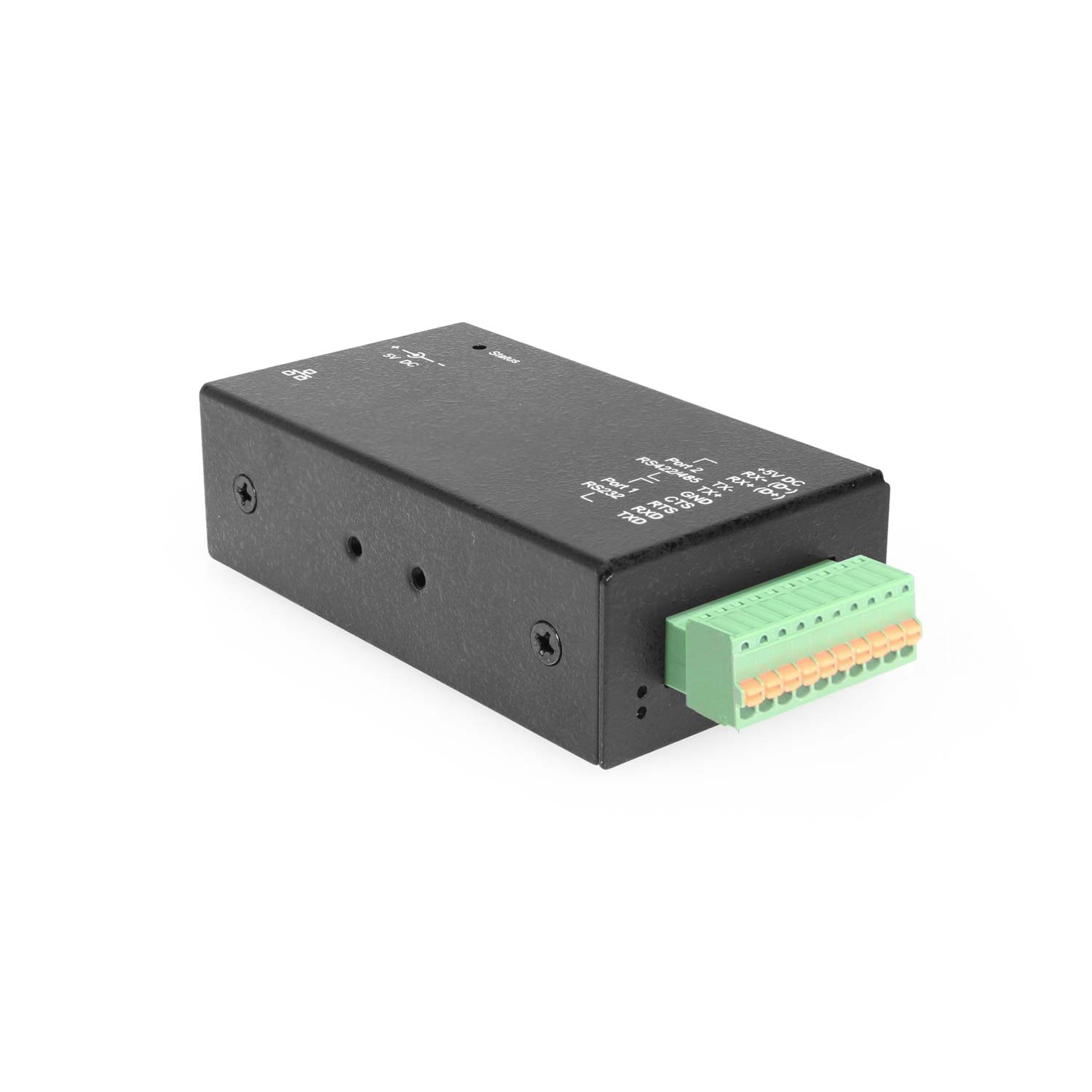

  • Supports 2 Serial Ports (1 x RS232 and 1 RS-422/485) Over Ethernet on a 10-pin Terminal Blocks

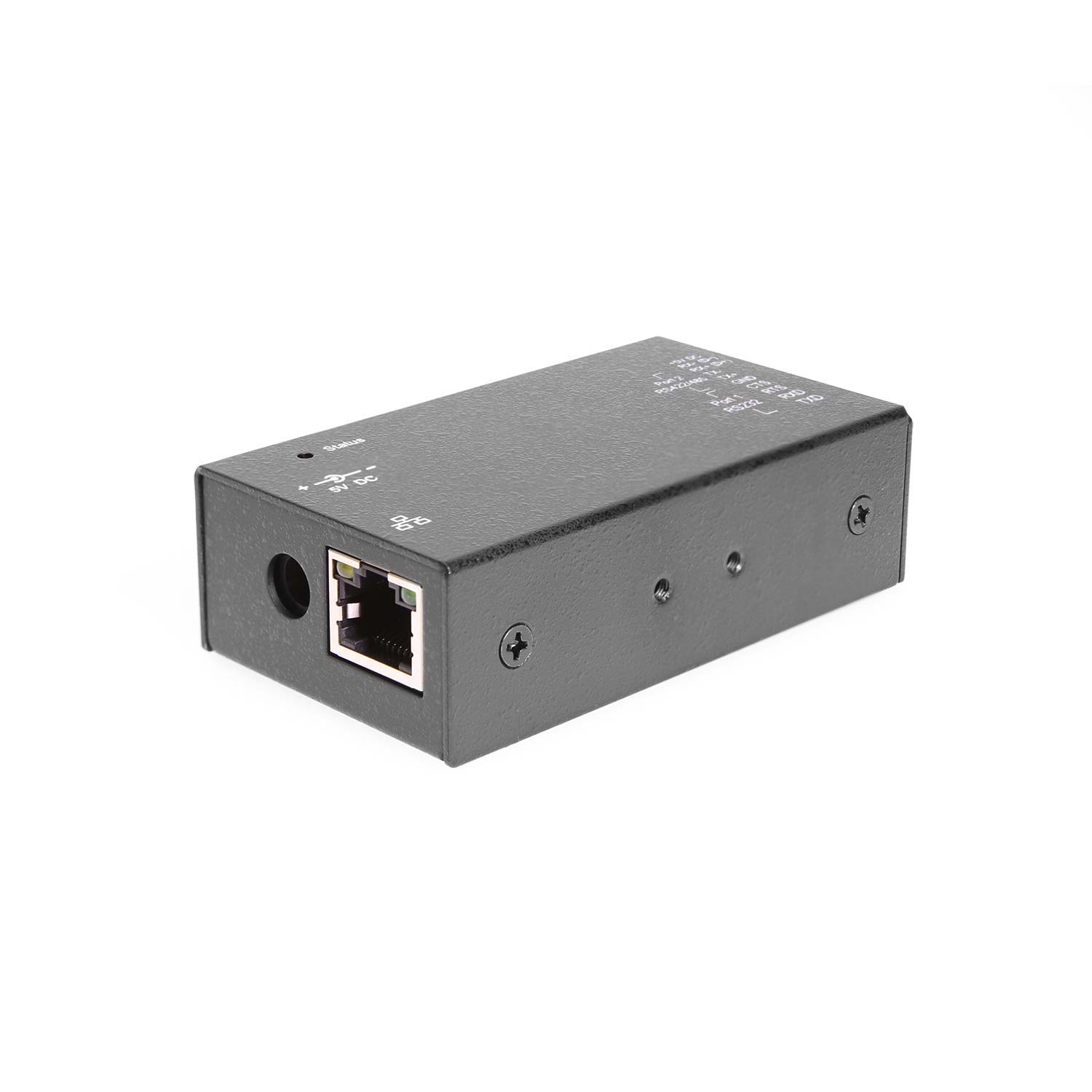

  • 1 RJ45 10/100 Mbps Ethernet Port

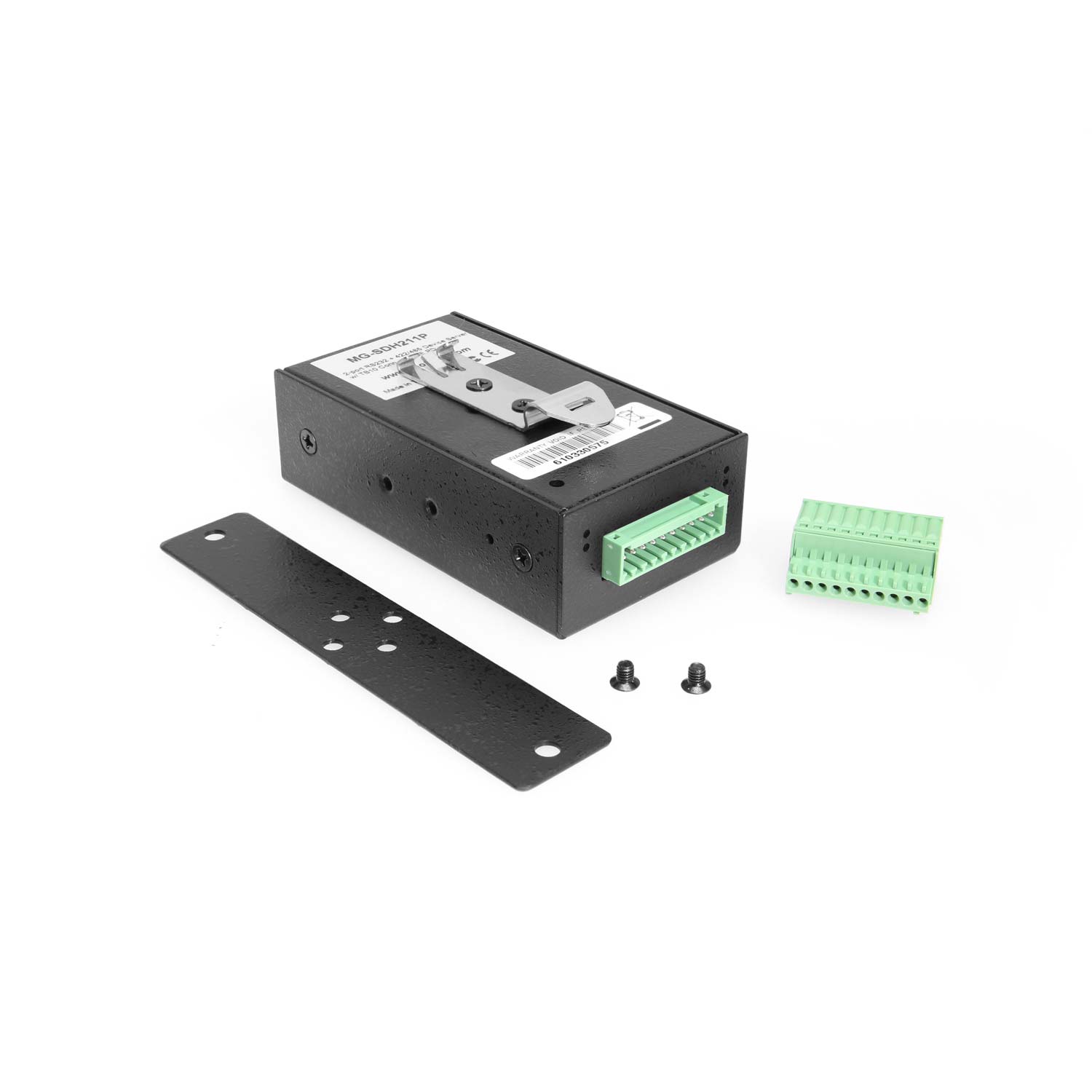

  • Rugged Metal Case with DIN-Rail and Wall-Mount Kit
  • Serial Modes:
    • Port 1: RS232 Mode
    • Port 2: RS422, RS485 4-wire and 2-wire Modes
  • Network Protocols: TCP Server, TCP Client, UDP, VCOM, Serial Telnet, RFC2217, Remote-Pair-Master-Slave, Modbus Server, Modbus Client
  • Supports SNMP Protocols
  • Supports 15 KV ESD Protection for all Serial Signals
  • Provides Rich Configuration Methods Including Windows Based VCOM Administrator Utility and Web Browser
  • Provides COM Port Redirection (Virtual COM) Drivers
  • Supports Serial Baud Rate Up to 921.6Kbps
  • Supports Automatic Data Flow Control
  • Compact Size, Multiple Orientation Mounting Options
  • Can be powered by either PoE or the included 5V DC Power Supply

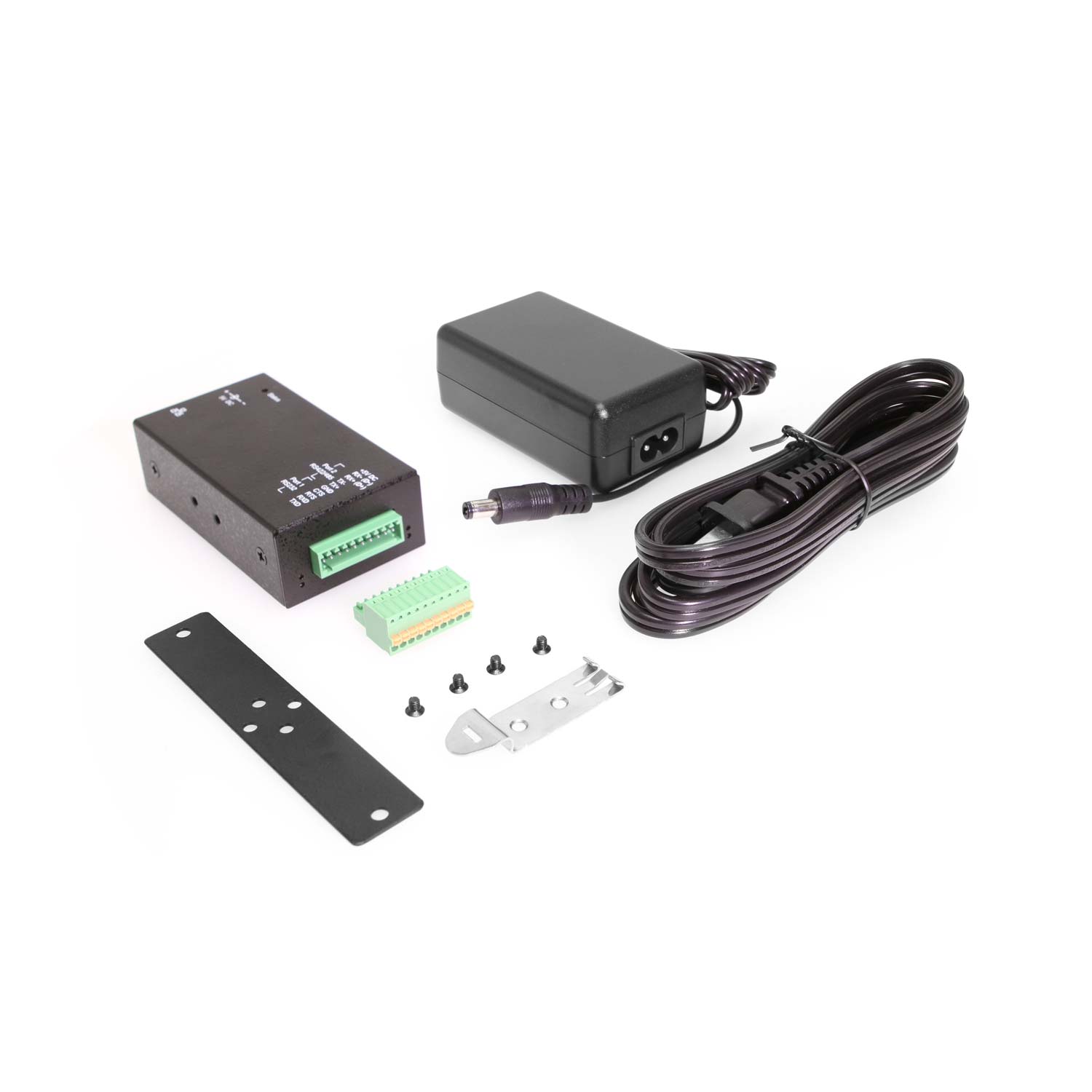

Package Contents:

  • 2-Port Serial to Ethernet Device Server w/ Terminal Block
  • 5V DC Power Supply
  • DIN Rail Clip
  • Surface Mounting Bracket
  • Screw Pack (4x)
Specifications

Product Specifications

Environmental
Operating Temperature

0 to 60C

Storage Temperature

-20°C to 75°C

Humidity

5% ~ 95% (non-condensing)

Performance
ESD Protection

15KV Surge Protection for Each Port

Power
Input Voltage

+5V DC

Software
OS Support

Win 10, Win 7, Win 8, Win 8.1, Win Vista, Win XP

Serial Attributes
Serial Standards

RS232/RS422/RS485

Baud Rate

921.6K bps

Serial Ports

2

Mechanical
Item Dimensions (L × W × H)

3.22 × 1.81 × 0.99 in.

Item Weight

0.34 lbs.

Compliance
Compliance

IEEE 802.3, IEEE 802.3u

Other Data
UPC

045079163287

Connector

DC Barrel, RJ45

Weight

1.10625 lbs

Dimensions

9.54 × 6.65 × 2.23 in

UPC: 045079163287
