4 Port SATA II / III Switch 3.5inch Design With KeyLock and LED

SATA Switch – Hard Drive Selector

The SW-SATA2X4 4 Port SATA II / III Switch provides a high performance link between one SATA host port and 4 SATA device ports. Bay Mounted, the push button switching and Key Lock design for security make this SATA switch a keeper!

  • Allows HDD Selection by discontinuing power to other drives.
  • Supports Key-Lock mechanism preventing unauthorized device setting changes.
  • Supports Serial ATA devices with up to 1.5Gb/s, 3.0Gb/s, or 6.0Gb/s Transfer Rate.
  • Supports any Serial ATA devices: Hard drives, Removable HDD, and more coming devices such as CD-ROM, CD-R, CD-RW, Tape, IOMEGA, LS-120, DVD-ROM.

$109.95

(11 customer reviews)

Out of Stock

Model No. SW-SATA2X4

Product Documentation

Quick Links:

Description

The SW-SATA2X4 4 Port SATA III Switch is Bay Mount designed to provide a high performance link between a single SATA 2/3 host port and 4 SATA device ports. It connects the host upstream port to one of the 4 downstream SATA devices (one device at the same time). It is done by simply pressing the push button switch.

SW-SATA2X4 4 Port SATA II Switch circuit image

With its Power Switching circuits, the SW-SATA2X4 can switch the devices power according to the settings of the SATA II / III signal switch once bay mounted. The 4 Port SATA Switch only allows the selected device to be powered and cuts off the powers of the other un-selected devices. This reduces the power consumption and makes sure those devices are truly off line to prevent from any accidental erasing of data by virus or application software.



The SW-SATA2X4 4 Port SATA switch provides a key lock mechanism to prevent from any unauthorized changing in drive or device settings. It helps home and school users to manage the devices quickly and easily.

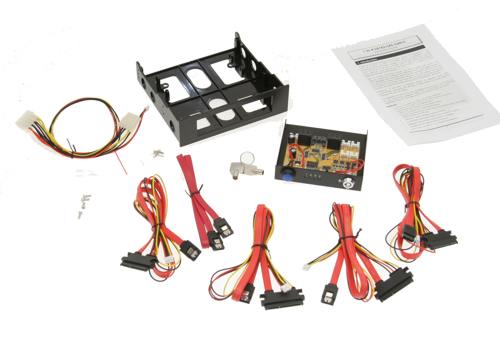

SW-SATA2X4 4 Port SATA switch package contents image

The SW-SATA2X4 is designed for optimum performance, expand ability and security. It is an ideal upgrade solution to support SATA and SATA2 devices for the rapidly changing data to preserve the user’s investment in the SATA interface.

Additional Features:

Serial ATA Interface:

  • 1 Upstream to 4 push-button-switchable downstream SATA2 Ports
  • Save the Settings by the Built-in EEPROM.
  • Provides a Key lock Switch to Prevent from any Unauthorized Changing the Settings
  • The Power of the Unselected Device was cut off to put it at the True Off-Line State
  • Supports Hot-Plug and Hot Swappable
  • Supports SATA3 (6Gbps) Compliant PI3PCIE3412
  • Supports Serial ATA devices with up to 1.5Gb/s, 3.0Gb/s, or 6.0GB/s Transfer Rate
  • Standard 3.5-inch Bay Form Factor, Easy to Install for Most of the PCs

Serial ATA Devices:

  • Supports any Serial ATA devices: Hard drives, Removable HDD, and more coming devices such as CD-ROM, CD-R, CD-RW, Tape, IOMEGA, LS-120, DVD-ROM

I/O Hardware:

  • 1 Host and 4 Device 7-pin SATA Connectors
  • 1 Input and 4 Output Power Connectors

OS Support:

  • Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, and Windows 8
  • Linux and Mac OS 10.X

Depends on the Upstream Host Controller. It is transparent from the Operating Systems.

Form Factor:

  • 3.43”x2.65” (8.71cm x 6.73cm)
Specifications

Product Specifications

Identifier
UPC

729440691738

Other Data
Warranty

1 year from date of purchase

Weight

1.4 lbs

Dimensions

11.5 × 7.5 × 2.75 in

UPC: 729440691738
Support

Product Documentation & Drivers

Product Documentation


Need drawings, CAD files, or other compliance documentation? Click HERE

Reviews (11)

11 reviews for 4 Port SATA II / III Switch 3.5inch Design With KeyLock and LED

  1. kjell

    Your product works as expected.

  2. Donald Duck

    I love the product. It allows me to have 4 operating systems on one computer instead of having to buy 4 new computers. What I would improove in the future:
    1) Make the LEDs in 4 corners of the faceplate instead of so close together. My full tower computer is under my desk and I have to sit on the floor to see exactly which LED is on.
    2) Let me choose which HD I want to connect BEFORE I press the power on my computer. It would be safer to cold swich the HDs instead of hot switching them.
    3) The key and lock are probably expensive. Please make a less expensive version of the product without a lock.
    4)If I could select the HD with a knob when the computer is still off that would be very good.

  3. George

    The quality of the manual is very poor. It is unclear and hard to see what SATA ports are 1 and 2 or 3 and 4.

  4. Bill D in Green Bay

    I’ve wanted something like this for YEARS. Works exactly as I’d hoped. It’s like I’ve got two computers in one case now. Thank you Cooldrives. Thank you so much. This needs to be on Amazon.

  5. Moonjong

    Working Im my pc very well
    i tested 4 port sata switcher in my pc.
    it works fine.
