RS232 DB9 to Terminal Block 5 Pin Passive Micro Adapter

Terminal Block Connector – Mini Serial RS232

This DB9 to Terminal is designed to convert the RS422/485 signals in a Micro sized package. The iSerial-TB5 DB9-Female to 5-pin Terminal Block RS422/485 Adapter conversion takes place from the DB9 (male) to 5-pin 3.5mm Terminal.

  • A passive adapter Supporting DB9 Female to terminal output RS422 or RS485.
  • Flexible conversion from DB9 based connection to RS485
  • Supports screw type wiring to meet standard industrial wiring applications.
  • Supports 3 modes: 4-wire RS422 (TXD+/-, RXD+/-), 4-wire RS485 (TXD+/-, RXD+/-) and 2-wire RS485 (Data+/-, Data+/-).

$21.95

In stock

View Volume Pricing

Units Price
1 - 4 $21.95
5 - 11 $21.29
12 - 24 $20.85
25 - 49 $20.41
50+ $19.76

Also available from:

Model No. iSerial-TB5

Quick Links:

Description

The DB9 to Terminal Micro sized iSerial-TB5 is a passive micro DB9-Female to 5-pin Terminal Block adapter. This RS422/485 adapter is designed to convert the RS422/485 signals from the DB9 (male) to 5-pin 3.5mm Terminal Block connector.

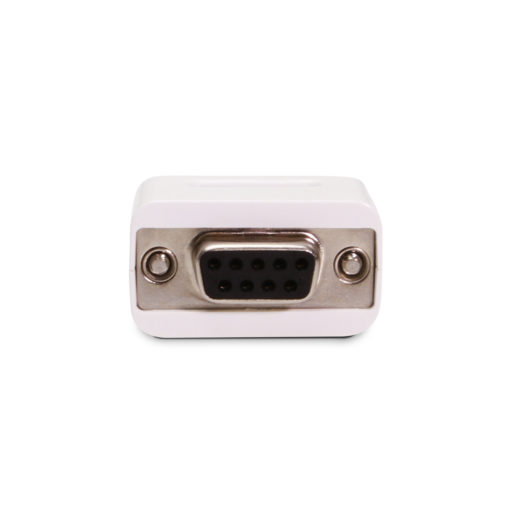

DB9-Female to terminal serial adapter image

With the iSerial-TB5 built-in DB9-female (DCE) connector and 3.5mm 5-pin Terminal Block, the DB9 to Terminal provides a flexible and reliable conversion for a DB9 based RS422/485 port. The terminal block supports screw-type wiring to meet the standard industrial wiring applications.

DB9 to Terminal Serial adapter 5-pin Terminal Block back view





Additional Features:

DB9-Female RS422/485 Port

  • The DB9-female RS422/485 connector provides the following key benefits:

Connector:

  • DB9-Female Connector

Interface:

  • 3 modes supported: 4-wire RS422 (TXD+/-, RXD+/-), 4-wire RS485 (TXD+/-, RXD+/-) and 2-wire RS485 (Data+/-, Data+/-)

TB-5 Terminal Blocks RS422/485 Port:

  • The 5-pin Terminal Block RS422/485 connector provides the following key benefits:

Connector:

  • 5-pin, 3.5mm pitch Terminal Block Connector
  • Supports Screw-type Industrial Wiring Standard

OS Support:

  • Windows XP, Vista, Windows 7, Windows 8, and Windows 10
  • Linux and Mac OS 10.X
Specifications

Product Specifications

Identifier
UPC

736983903334

Mechanical
Color

White

Ports

1 Serial Port

USB
Screw Lock Compatible

Yes

Serial Attributes
Serial Standards

RS232

Serial Ports

1

Software
OS Support

Linux, Mac OSX, Win 10, Win 7, Win 8, Win Vista, Win XP

Other Data
Warranty

1 year from date of purchase

Connector

5-Pin Terminal Block, DB9 Female

UPC-A

736983903334

Weight

.25 lbs

Dimensions

4 × 6 × 1 in

UPC: 736983903334
