8 Port PCI Express RS232/422/485 Module w/ Optical Isolation

PCI Express Adapter

The SG-PCIE8SRS422485MODIS Isolated 8 Port PCI Express Module provides instant RS232, RS422, and RS485 serial port expansion via the PCI Express bus to the external module with Terminal Block.

  • Provides 8 serial ports via terminal block with Optical Isolation.
  • High-speed data transmission to your equipment’s serial I/O bus.
  • Works with new and legacy RS232, RS422, RS485 devices with high demand speeds.
  • Is Engineered with Optical Isolation & Surge Suppression.

$659.95

In stock

View Volume Pricing

Units Price
1 - 4 $659.95
5 - 11 $640.15
12 - 24 $626.95
25 - 49 $613.75
50+ $593.96

Also available from:

Model No. SG-PCIE8SRS422485MODIS

Description

The SG-PCIE8SRS422485MODIS is an Optically Isolated RS232 /422 /485 8 port PCI Express Module Box and is designed to accommodate various digital signaling for your serial communication input/output applications.

The 8 Port PCI Express Module provides instant RS232, RS422, and RS485 serial port expansion via the PCI Express bus to the external module for PC, workstation, thin client, or server. It supports applications that need some combinations of all signal connections in one single PCIe slot, includes Surge Suppression circuitry.

This 8 Port PCI Express Module Box provides a highly scalable serial interface with high-speed data transmission to your equipment’s serial I/O bus. Backward compatibility with PCI applications and drivers is a key feature when using various digital signal connections. Its architecture defines a high-performance, point-to-point, serial bus at speed of 250Mbytes/sec to 4GBytes/sec.

8 Port PCI Express RS232/422 /485 Optically Isolated Module image

The SG-PCIE8SRS422485MOD is compatible with new and legacy RS232, RS422, RS485 devices demanding high-speed transmission; this includes future speeds of up to 8Gbytes/sec.

Using Plug-and-Play installation features simply follow the instructions of Install Wizard to start using your additional serial ports. The PCI Express Module provides the versatility needed to quickly adapt to new serial technologies.

Coolgear’s complete product line of PCI Express Cards offer many choices to help expand your serial applications and allow your network to grow with your requirements. The terminal blocks enable you to easily install your wires for different devices in a straight forward process making an ideal solution for your serial projects.

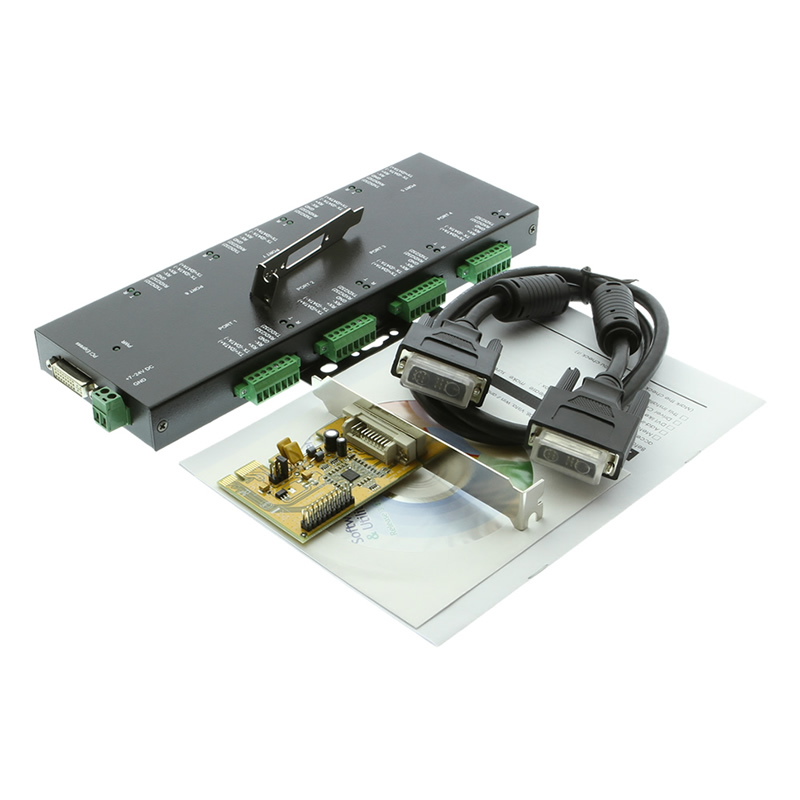

8 Port PCI Express RS232/422/485 Module w/ Optical Isolation kit image

Additional Features & Specifications:

System

  • Fully Compliant with x1 PCI Express Base Specifications 1.1
  • Is Engineered with Optical Isolation & Surge Suppression

Terminal Block Serial Ports

Provides 8 7-pin terminal block connector RS232/422/485 ports, the key benefits are:

  • Connectors: 8 7-pin lock type Terminal Block Connectors
  • LEDs: Supports LED Indicators for TXD and RXD Signal Activity
  • Interface: 4 modes: 3-wire RS232, 4-wire RS422 (TXD+/-, RxD+/-). 4-wire RS485 (TxD+/-, RxD+/-). 2-wire RS485 (Data+/-)
  • Parity: None, Even, Odd
  • Data bits: 5,67,8,9 bits Data Frames
  • Speed: up to 921.6Kbps
  • Terminator: 120 OHM, can be Enabled/Disabled by DIP switches
  • ATTATM: Auto RS485 Transmitter buffer direction control by the ATTATM Hardware. Guarantee Fast Turn Around the Transceiver.
  • Power: The Module Box can be powered by Cable or its 2-pin Terminal Block Connector

I/O Hardware

  • 8 7-pin Terminal Block Connectors
  • 1 DVI-like PCI Express Connector
  • 1 2-pin Power Input Connector

OS Support

  • Windows 10, 8, 7, Vista, 2008, 2003, Win2000, XP, and Linux

Environmental Specifications

Operating Temperature: 0 to 55°C (32 to 131°F), 10% to 90% relative humidity (non-condensing)

Storage Temperature: -40 to 75°C (-40 to 167°F), 5% to 95% relative humidity (non-condensing)

Form Factor (without ears and connectors)

  • 9.68” (L)x 3.37”(W)x0.91”(H) (24.60cm x 8.57×2.32cm)

Package Contents

  • 8 Port PCI Express RS232/422/485 Module
  • 1x DVI-like PCI Express Connector
  • 1x PCI Express card
  • Driver Disc
  • Paper installation manual

*Surface Mounting screws not included.

Specifications

Product Specifications

Compliance
Certifications

,

Compliance

RoHS, TAA

Mechanical
Color

Black

Mounting Style

Surface Mount

Ports

8 Serial Ports

USB
USB Type

USB 2.0

Isolated/Surge Protected

Yes

Serial Attributes
Serial Standards

RS232, RS422, RS485

Software
OS Support

Win-2000, Linux, Win 10, Win 7, Win 8, Win Vista, Win XP

Environmental
Operating Temperature

0C to 55C

Performance
Isolated/Surge Protected

Yes

Other Data
Connector

PCIe, Terminal Block

Warranty

1 year from date of purchase.

Weight

2 lbs

Dimensions

11.5 × 7.5 × 2.75 in

UPC: 736983900227
Replacement Parts

Replacement Parts

Did you misplace or break a part that came with your item? Purchase it here!

Replacement 2-Pin Power Connector for CoolGear USB 3.0 Hubs such as USBG-7U3ML.

Model# CG-2PPW

$2.95

In stock

Add to cart
