32 Port RS-232 USB-to-Serial Adapter

Serial USB Adapter – Full RS232 Modem Control

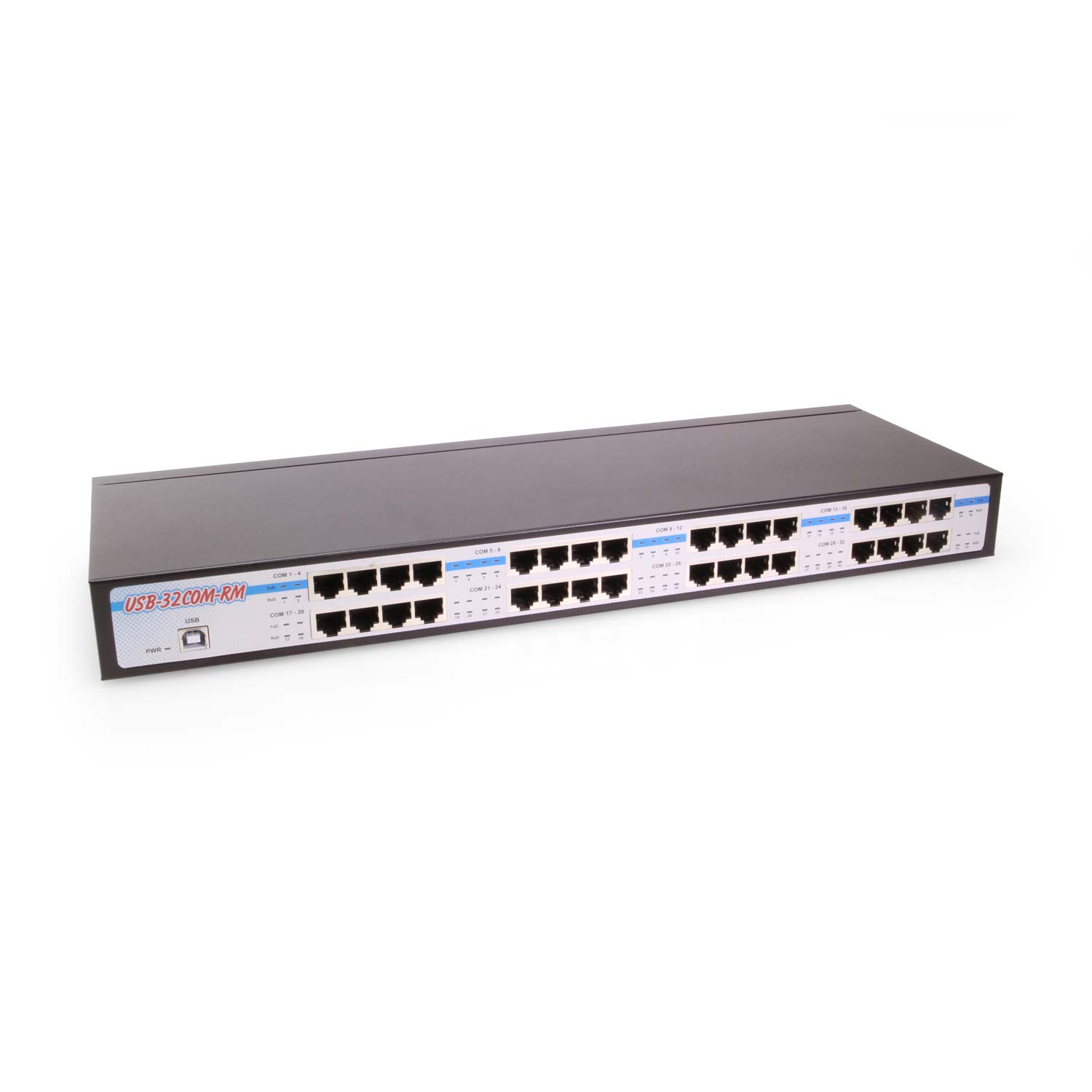

The USB-32COM-RM USB to 32 Port RS-232 Serial Adapter is designed for industrial applications and harsh environments making serial port connections easier. The USB-32COM-RM is a rack mountable industrial USB to 32 Port RS-232 Serial adapter that allows you to add thirty two RS-232 serial ports by connecting to a single USB host port.

  • Adds 32 RS232 Serial Ports through Plug and Play installation with no conflicts.
  • Works in Self-Powered mode with a built-in switching power supply of 100V/240V input.
  • Manufactured for industrial environments, the adapter is DIN-Rail Mountable.
  • Features full RS-232 modem control signals and hardware/software flow control with RS-232 data signals TxD, RxD, RTS, CTS, DSR, DTR, DCD, GND

$659.95

In stock

View Volume Pricing

Units Price
1 - 4 $659.95
5 - 11 $640.15
12 - 24 $626.95
25 - 49 $613.75
50+ $593.96

Also available from:

Model No. USB-32COM-RM

Description

USB-32COM-RM RJ45 to Serial Port Connection

Introduction:

The USB-32COM-RM USB to 32 Port RS-232 Serial Adapter is designed for industrial applications and harsh environments making serial port connections easier. Using an available host USB port on your computer or USB hub, the USB-32COM-RM Serial Adapter instantly adds thirty-two RS-232 serial communication ports to your system.

By taking advantage of the USB bus, the USB Serial Adapter makes it easier than ever to add serial ports and serial devices to your system with easy plug-and-play and hot plug features. Plugging the USB Serial Adapter to the USB port, the adapter is automatically detected and installed. There are no IRQ & COM port conflicts, since the ports do not require any additional IRQ, DMA, memory as resources on the system. The adapter is self-powered, and has built-in switching power supply of 100V/240V (input) inside the chassis. The 32 Port RS-232 USB to serial adapter box Industrial Metal case with RJ-45 Plugs (DB-9 cables provided). No configuration necessary as there are no IRQ & COM port conflicts.

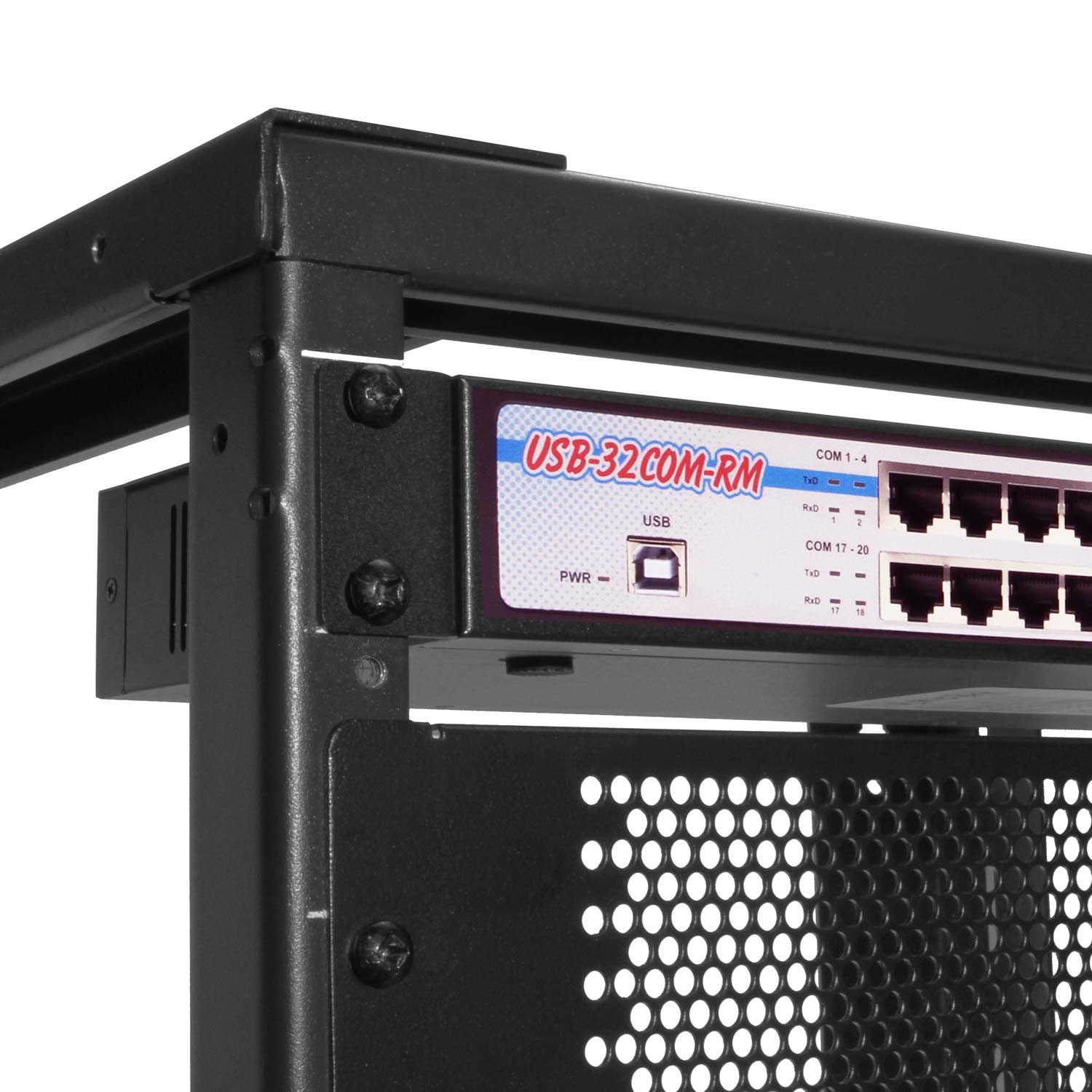

The adapter is with DIN rail bracket for industrial environment. The adapter can be also mounted to a 19 inches rack, and the rack mount kits are included with the adapter. The USB 32COM Serial Adapter provides instant connectivity with modems, ISDN TAs, PDAs, handheld & pocket PCs, digital cameras, POS, serial printers. It is suitable for remote access, retail and industrial applications, data collection and other applications requiring high-speed RS-232 serial communication ports.



Features:

USB-32COM-RM RJ45 to DB9 Close up

  • Adds thirty-two industrial RS-232 serial ports by connecting to a USB port
  • Installed as standard Windows COM port

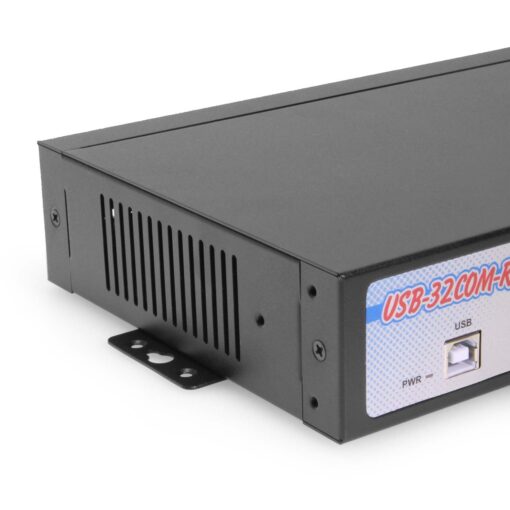

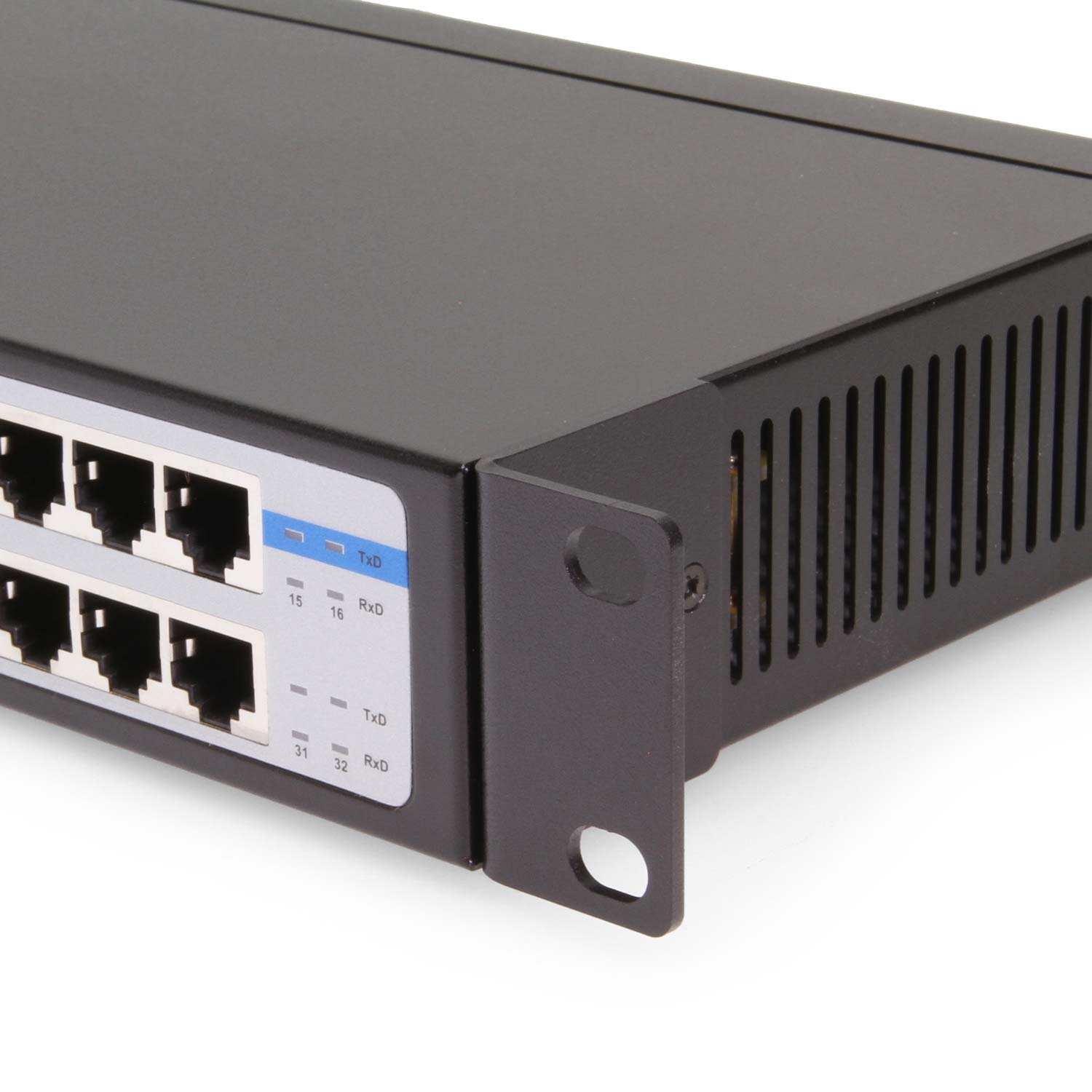

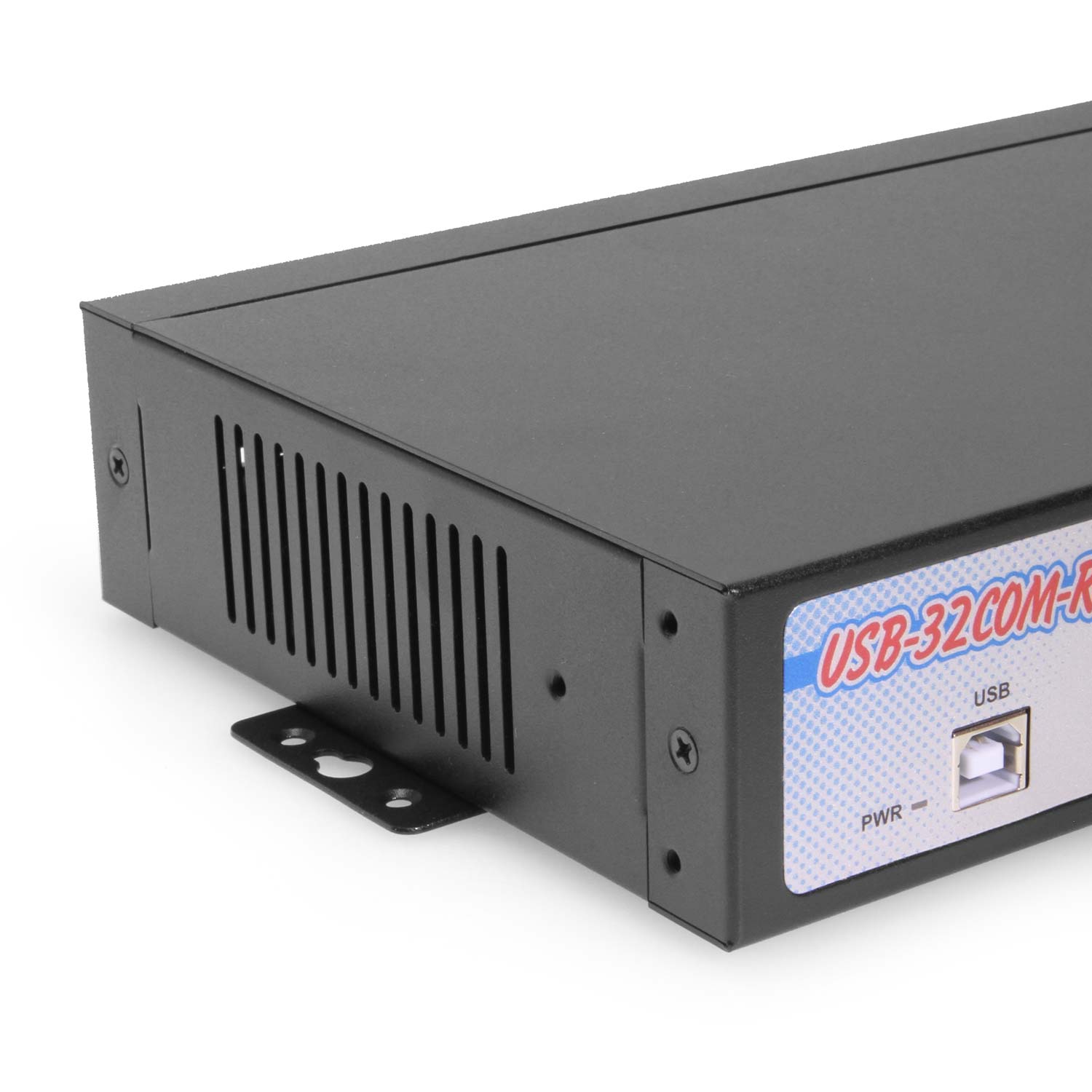

  • SECC metal chassis with both DIN rail brackets and rack-mounting kits for flexible mounting
  • Full RS-232 modem control signals and hardware/software flow control
  • RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, GND
  • High speed serial port with the baud rate up to 921.6K bps
  • 128 byte transmit FIFO & 384 byte receive FIFO
  • Non-standard baud rates supported

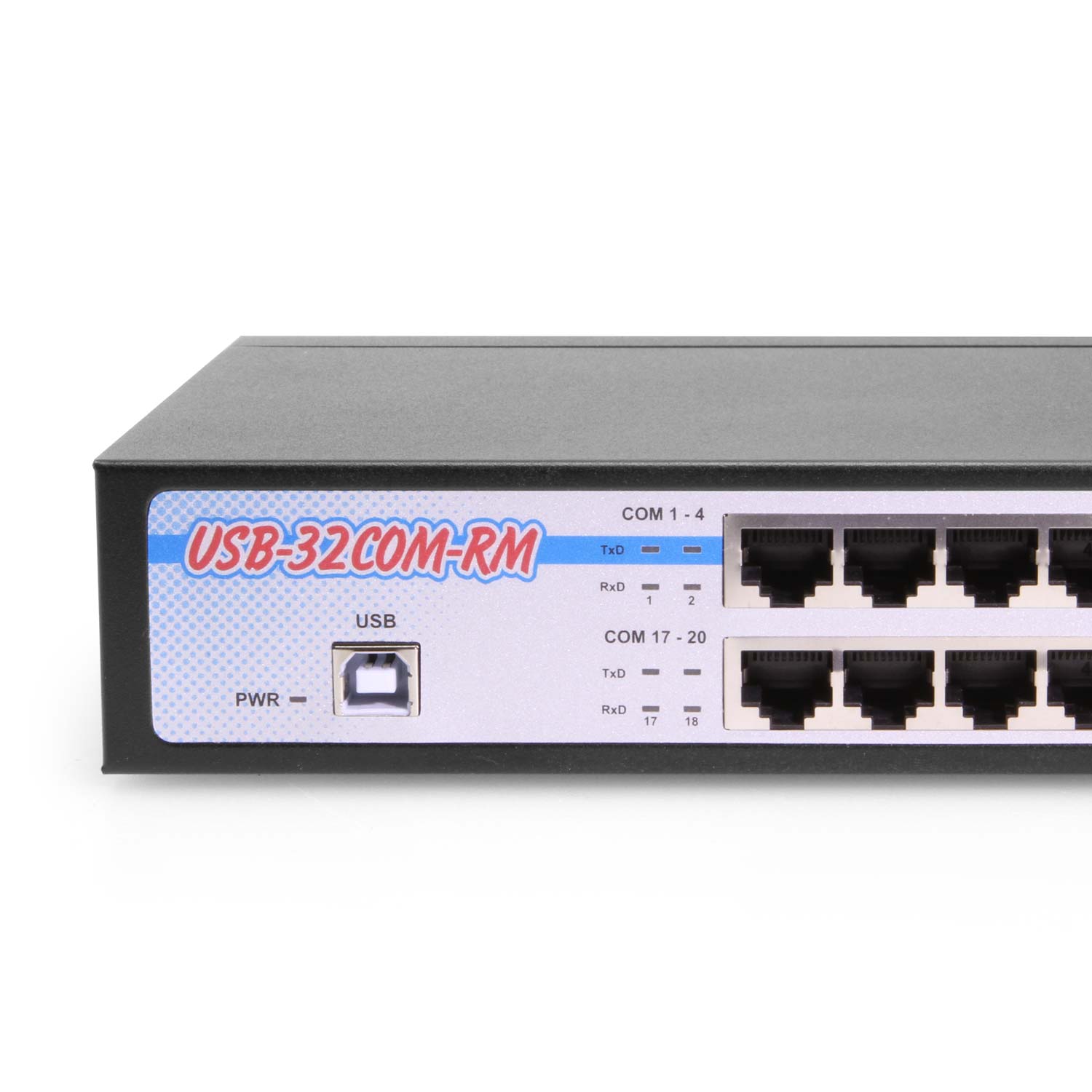

  • LEDs of Power, TxD and RxD for easy port monitoring and diagnostics
  • Serial port protected with surge protection of 10KV
  • Built-in switching power supply of 100V~240V
  • Provides 32 pieces of RJ45-to-DB9 cable for serial connection
  • Easy plug and play installation and RS-232 device connection
  • COM port number assigned can be changed to any COM port number required
  • Works with USB 1.1 & 2.0 host port

OS Support:

  • Windows XP, Vista, Windows 7, Windows 8, and Widows 10
  • Linux and Mac OS 10.X

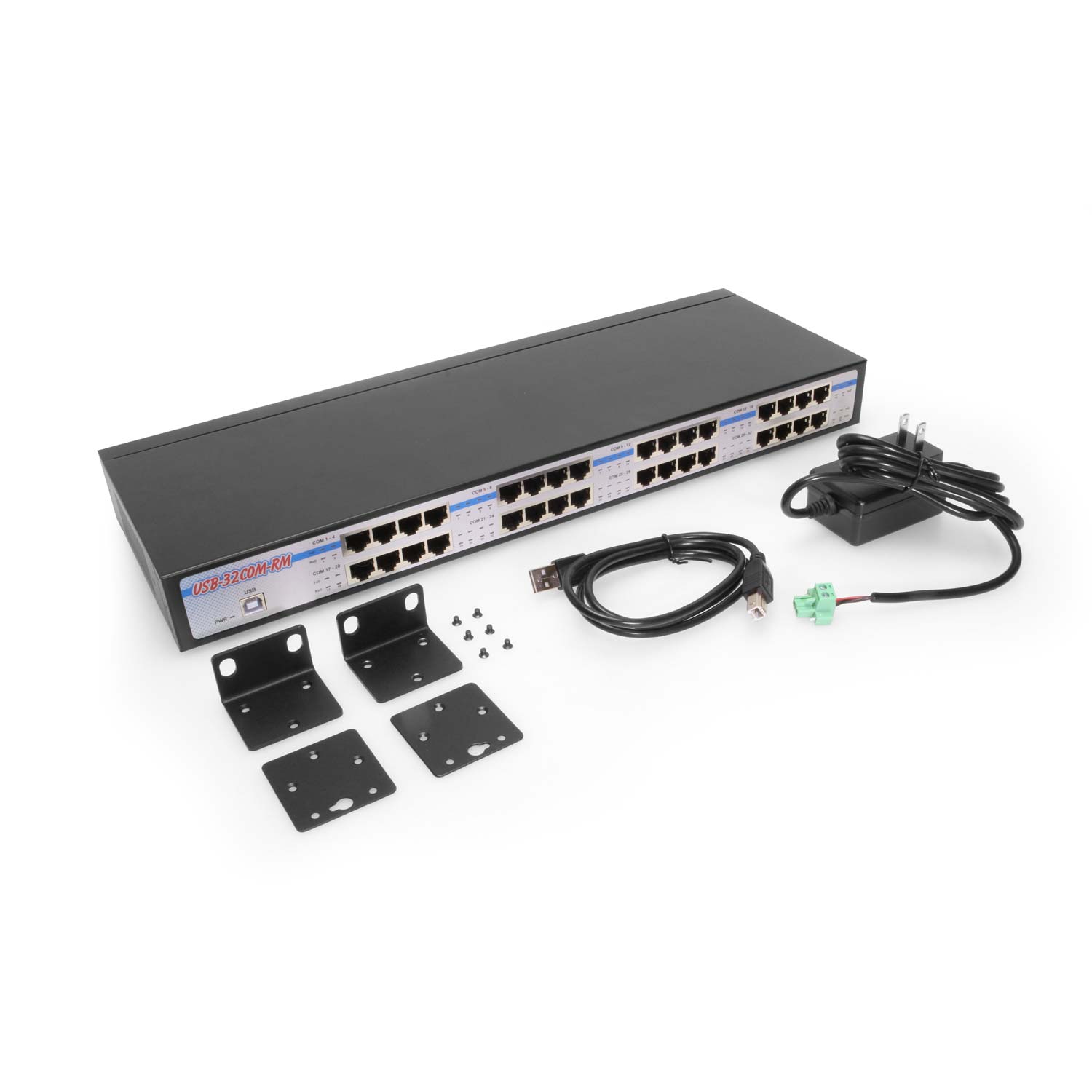

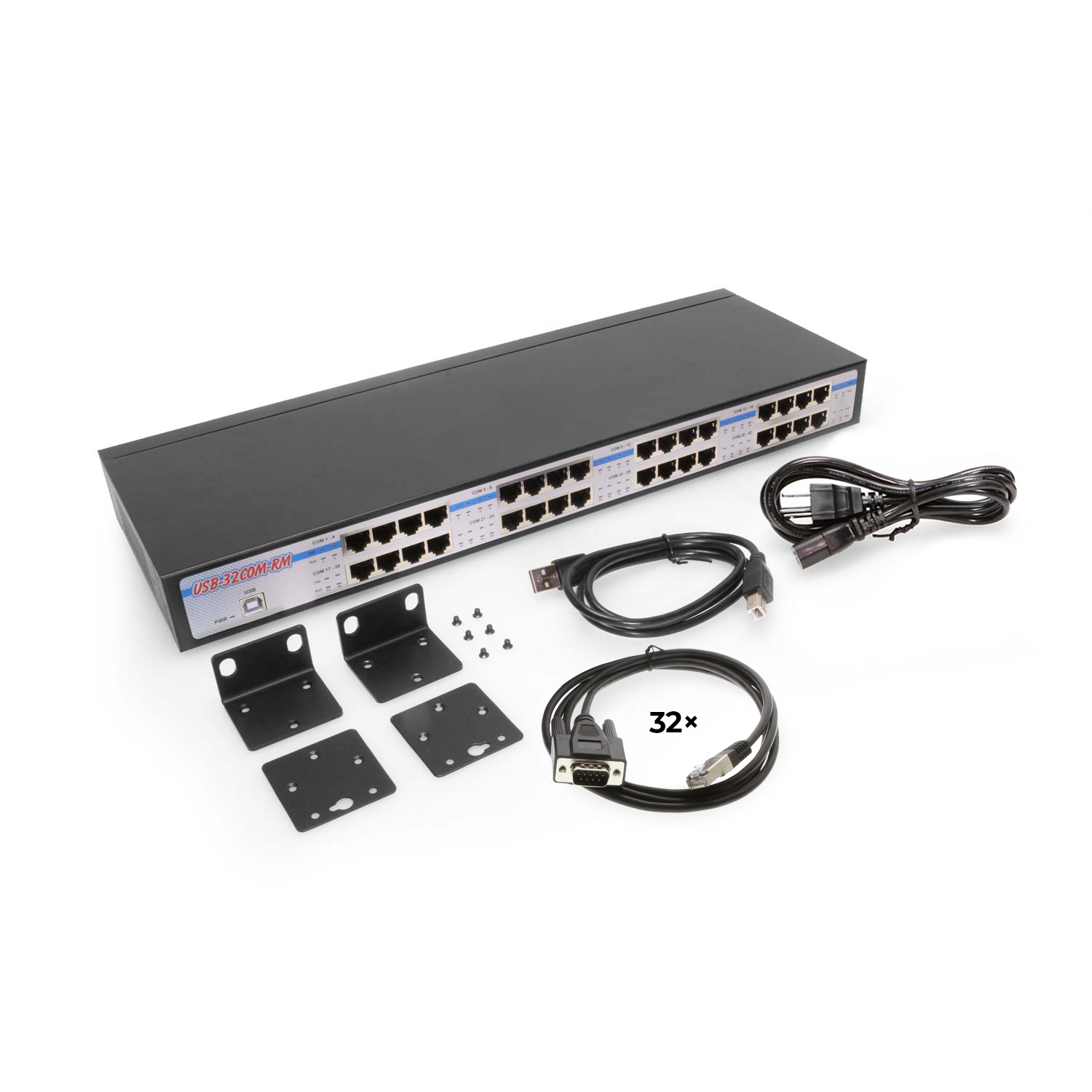

Package Contents:

  • 32 port serial adapter housed in a standard 19-inch, 1U Rack-Mount chassis
  • 5ft. DB9 male to RJ45 serial cable
  • Din Rail mounting brackets and screws
  • Rack mounting brackets and screws
  • Power cord

*32x DB9 male to RJ45 serial cables boxed separately

Specifications

Product Specifications

Compliance
Country of Origin

Taiwan

Compliance

RoHS, TAA

Mechanical
Color

Black

Item Dimensions (L × W × H)

16.89 × 5.79 × 1.73 in.

Length

5ft

Mounting Style

Rack Mount, Surface Mount

Ports

32 Serial Ports

Serial Attributes
Serial Standards

RS232

Software
OS Support

Linux, Mac OSX, Win 10, Win 7, Win 8, Win XP

Environmental
Operating Temperature

0C to 55C

Hardware
Chipset

FTDI

Other Data
Connector

RJ45

Chip Model

FT4232HL, GL852GT, ZT3243LFEA

Warranty

1 year from date of purchase

Weight

13 lbs

Dimensions

22.5 × 8.5 × 5.25 in

UPC: 729440690830
Technical

Technical Specifications:

USB Bus
Compliance USB 1.1/2.0 compatible
Speed 480 Mbps, hi-speed USB
FIFO 128 byte transmit FIFO
384 receive FIFO
Serial Interface
Port Type RS-232
Number of Ports 32
Connectors RJ-45
32 pieces of RJ-45-to-DB9 cable, 150cm
Serial Line Protection
ESD Protection 10KV
Serial Port Speed
Baudrate 300 bps to 921.6k bps
Serial Communication Parameters
Data Bits 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Driver Support
OS Windows 7, Vista, 2003, XP (WHQL certified) and 2000
Linux Kernel 2.6.3.1 and up built-in support
Power Supply
Input Self-powered
Built-in AC to DC switching power supply with wide range of AC input from 100VAC to 240VAC
Mechanical
Chassis SECC metal chassis with DIN rail bracket
Rack-mounting brackets included
Environmental
Operating Temperature 0 to 55 °C (32 to 131 °F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 75 °C (-4 to 167 °F)
Safety Approvals EN55022 Class B, EN55024, EN61000-3-2, EN61000-3
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11.
CISPR PUB. 22 and FCC Part 15 Class B.



RJ-45

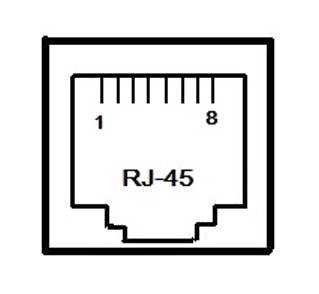

RJ-45 Connector Pin-outs

RS-232 Signal Pin-outs of RJ-45

RJ-45 Connector Pin-outs
  Pin Signal
  1 RTS
  2 DTR
  3 GND
  4 TxD
  5 RxD
  6 DCD
  7 DSR
  8 CTS
RS-232 DB9 Male

RS-232 DB9 Male Connector Pin-outs

RS-232 Signal Pin-outs of DB-9 Male

RS-232 DB9 Male Connector Pin-outs
  Pin Signal
  1 DCD
  2 RxD
  3 TxD
  4 DTR
  5 GND
  6 DSR
  7 RTS
  8 CTS
  9
