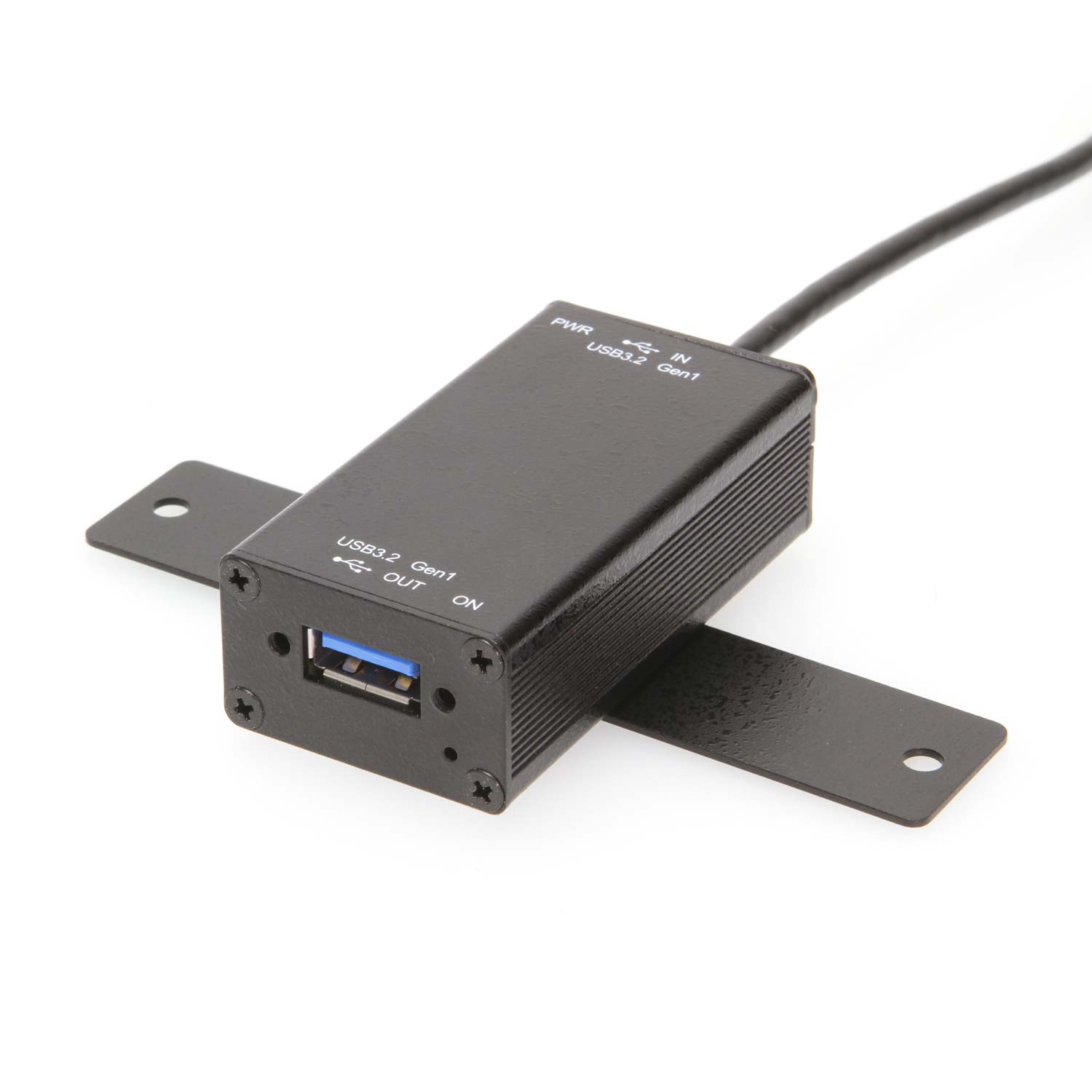

Single Port Managed USB-C 3.2 Gen 1 Adapter w/ ESD Surge Protection and Software On/Off Control

Model No. CG-1MGDU3C

Industrial Grade | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

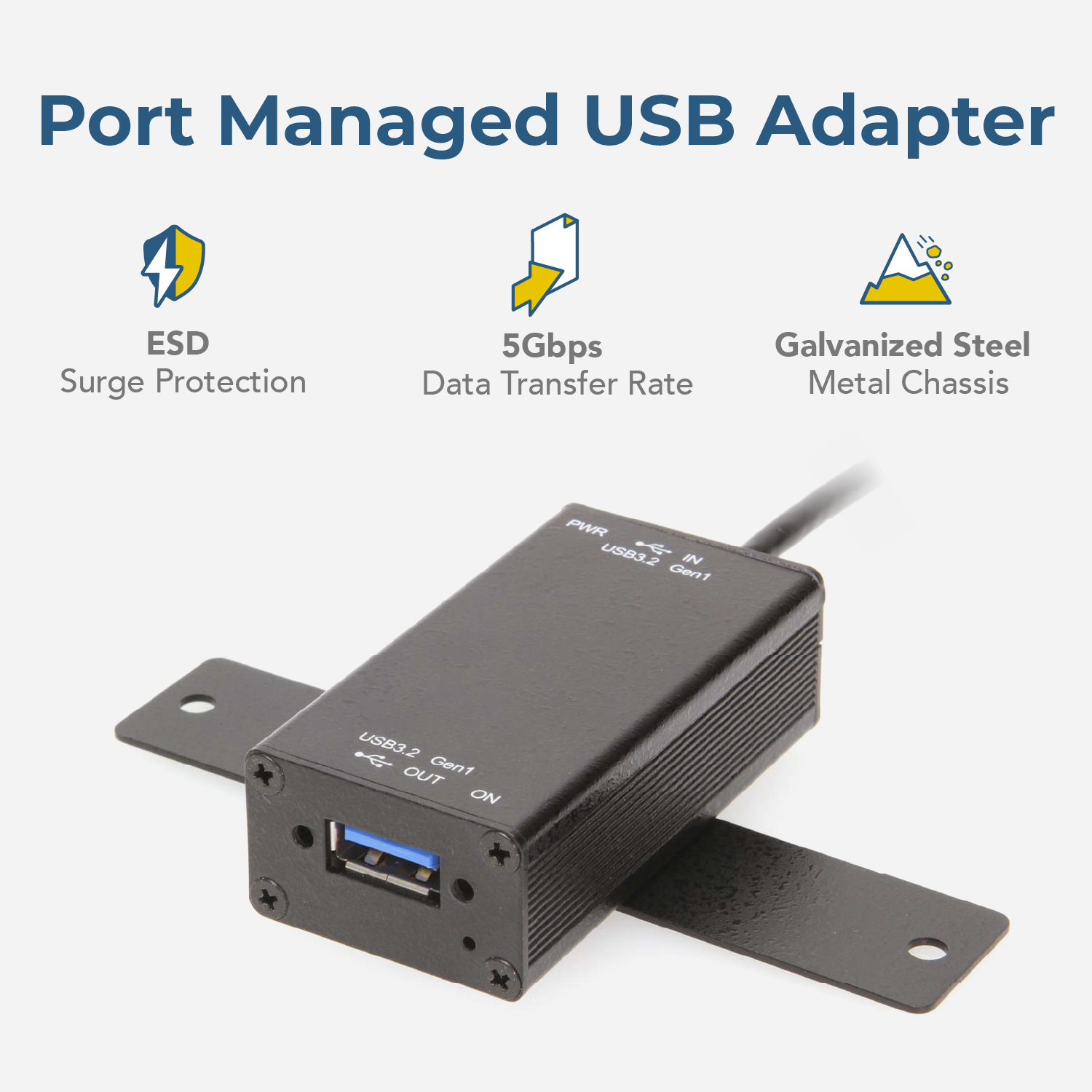

Advanced Protection: The single port USB 3.2 Gen 1 adapter protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected device will be protected.
Super Fast Speeds: This USB adapter is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
Port Management Integration: Integrates seamlessly with existing hubs to provide enhanced control and management features. Control the port’s status, turn bus power on/off, and even reset the adapter through the adapter’s management software which supports Windows, Mac, and Linux operating systems

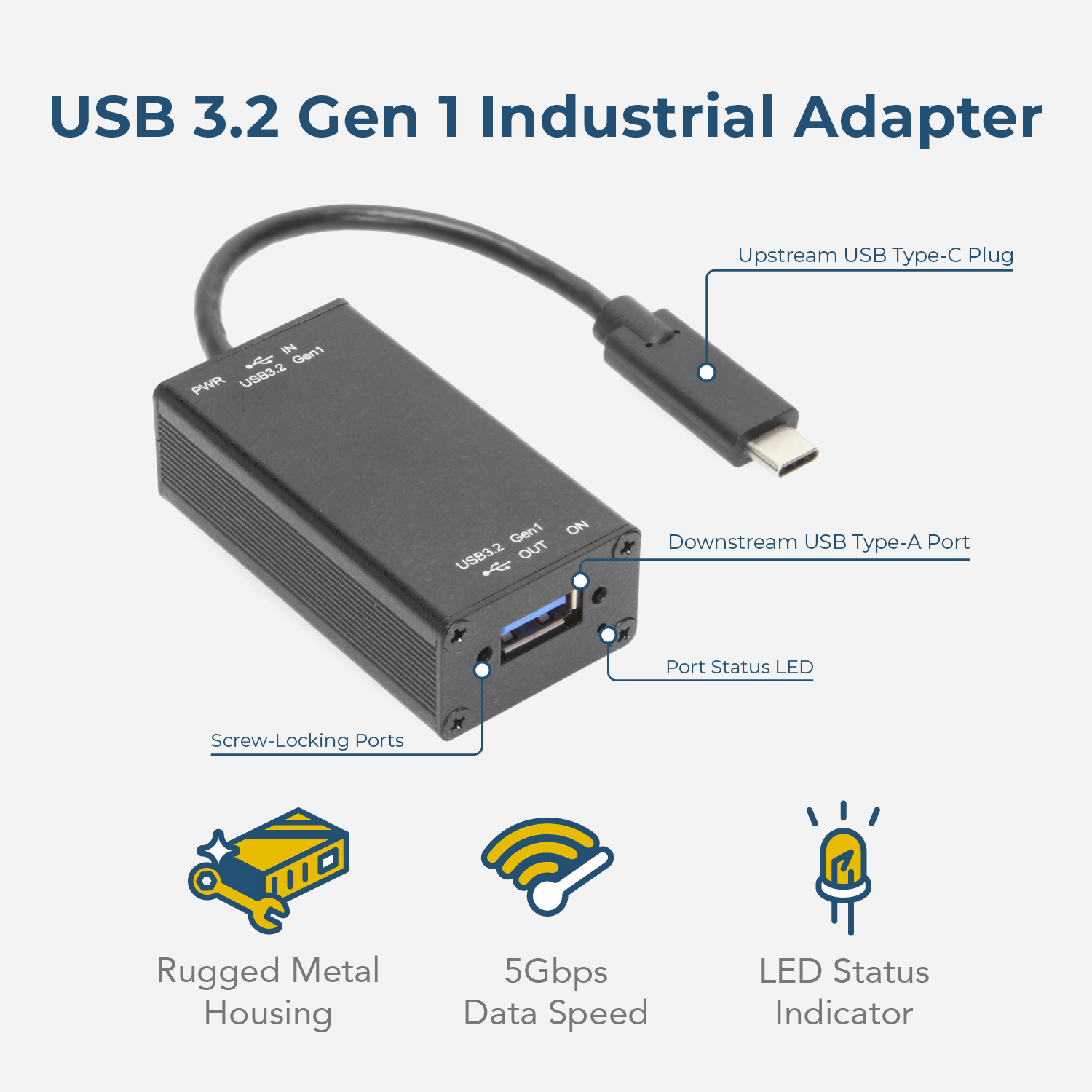

Upstream: 1 USB plug, Type C connector
Downstream: 1 USB port, Type A connector, Screw-lock type
LED Indicators: LEDs for upstream and downstream port to indicate the current bus

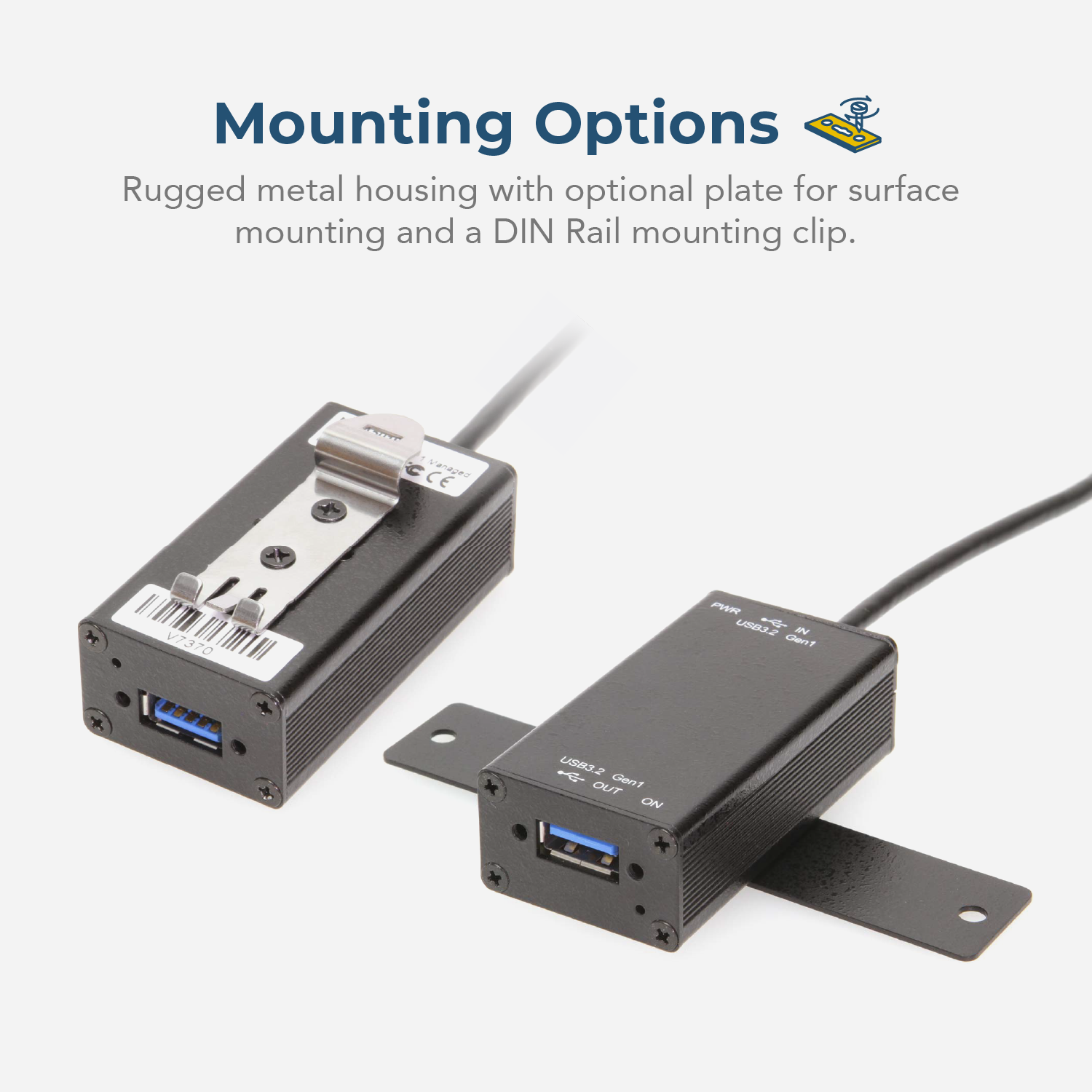

Mounting Options: Wall, Surface, and DIN Rail

$105.49

Bulk Pricing

Model No. CG-1MGDU3C

RoHS

TAA

In stock

Need some help? Contact us.

Product Documentation

Quick Links:

Description

Boost USB Management Efficiency with the Single Port Managed USB-C 3.2 Gen 1 Adapter

The Single-Port Managed USB-C 3.2 Gen 1 Adapter puts you in control, providing robust port management capabilities to simplify complex tasks in industrial, commercial, and engineering environments. Whether you’re managing devices, automating workflows, or enhancing your existing USB hub’s functionality, this adapter delivers a seamless solution.

Key Features

Advanced Port Management: Easily control connected devices, reset ports, and manage power through intuitive software.
High-Speed Performance: Supports USB 3.2 Gen 1 with data transfer rates up to 5Gbps.
Multi-Platform Compatibility: Works with Windows, Linux, and Mac OS systems, with easy-to-use GUI and command-line utilities.
Industrial-Grade Protection: Built with 15kV ESD surge protection to safeguard your devices.
USB Battery Charging Support: Compliant with USB Battery Charging Spec v1.2, compatible with Apple 2.4A and Samsung charging modes.
Individual Port Labeling: Digitally label individual ports when connecting multiple adapters.

Simplify Port Control

Gone are the days of limited USB hubs—this adapter brings a new level of functionality. The CG-1MGDU3C enables you to power-cycle, monitor, and reset devices, all from one place. Perfect for engineers and IT professionals, it simplifies managing power settings and device configurations with just a few clicks within the included management software.

Image: Port managing software displaying the On/Off status of each port.

Industrial and Commercial Ready
Designed to meet the needs of industrial applications, this adapter offers advanced port management in rugged environments. Its 15kV ESD protection ensures reliable performance, even in challenging conditions.

Easy Integration, Total Control
The adapter integrates smoothly with existing setups, adding value to your USB hubs and connected devices. With customizable software, users can automate and save device settings directly to the adapter’s flash memory, ensuring configurations are retained after power cycles.

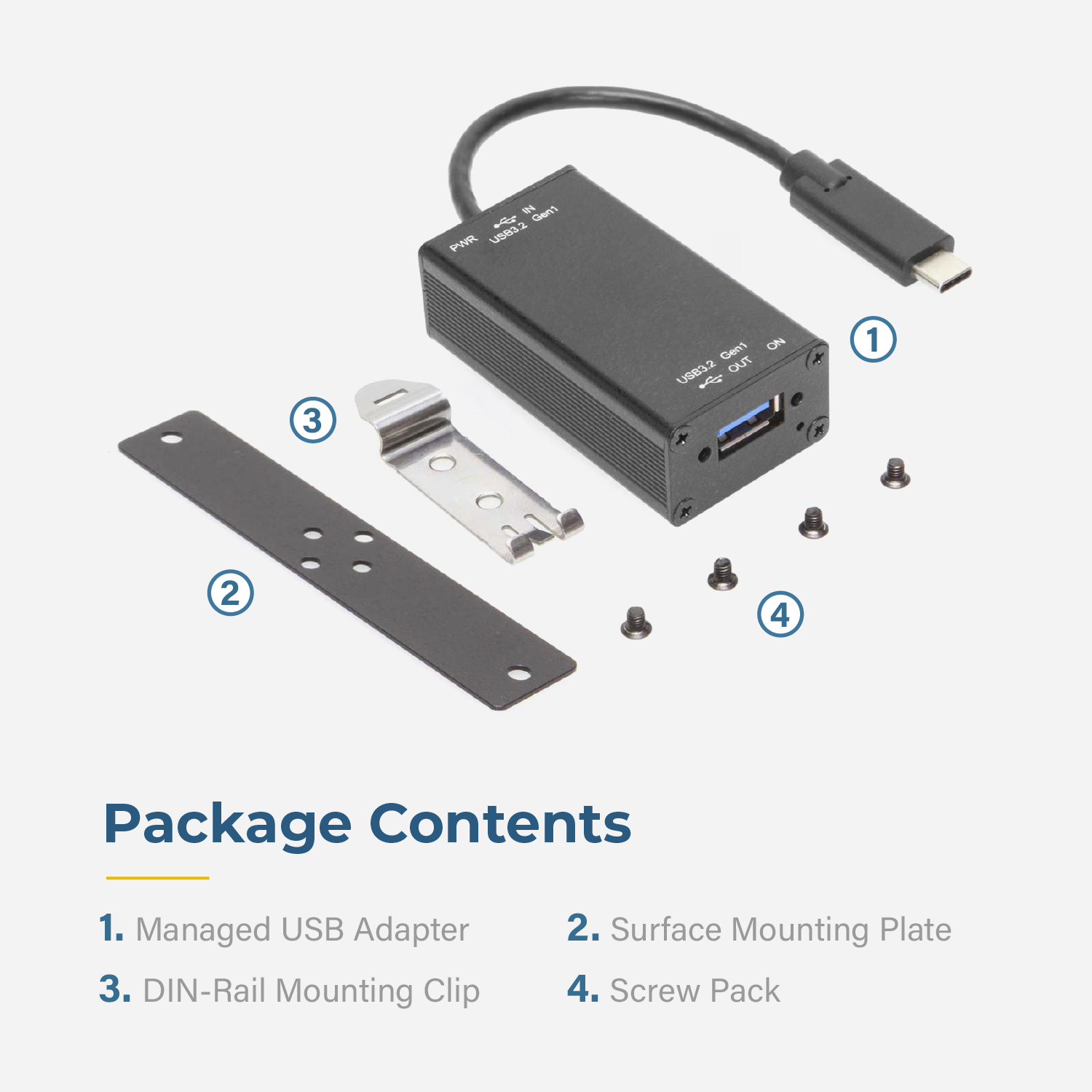

Package Contents

1 Port Managed USB-C 3.2 Gen 1 Port Adapter
Management Software Disc
Surface Mounting Plate
DIN Rail Clips
Screw Pack

Product Video

Specifications

Product Specifications

Power

Charging Protocols

Apple 2.4A, BC 1.2, Charging Downstream Port (CDP), Dedicated Charging Port (DCP), Samsung, Standard Downstream Port (SDP)

Compliance

Country of Origin	Taiwan
Certifications	RoHS, TAA

Physical Characteristics

Color	Black
Item Dimensions (L × W × H)	2.37 × 1.30 × 0.79 in.
Item Weight	0.15 lbs.
Mounting Style	Din-Rail Mount, Surface Mount, Wall Mount
Material of Construction	Steel
Screw Lock Compatible	Yes

Software

Managing Software Utilities

cusba: ARM Based Linux Controller Utility, CUSBC: Windows Console Command Control Utility, cusbi: Intel x86-64 Based Linux Control Utility, CUSBM_GUI: Mac OS GUI, CUSBM: Mac OS Terminal Script Utility, USBCTL: Windows GUI, cusba 64: ARM AARCH64 Linux Controller Utility

Environmental

Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20 to 75°C (-4 to 167°F)
Humidity	5% ~ 95% (non-condensing)
Altitude	Up to 2000m
