6 USB 3.1 Type-C Gen1 Data Ports

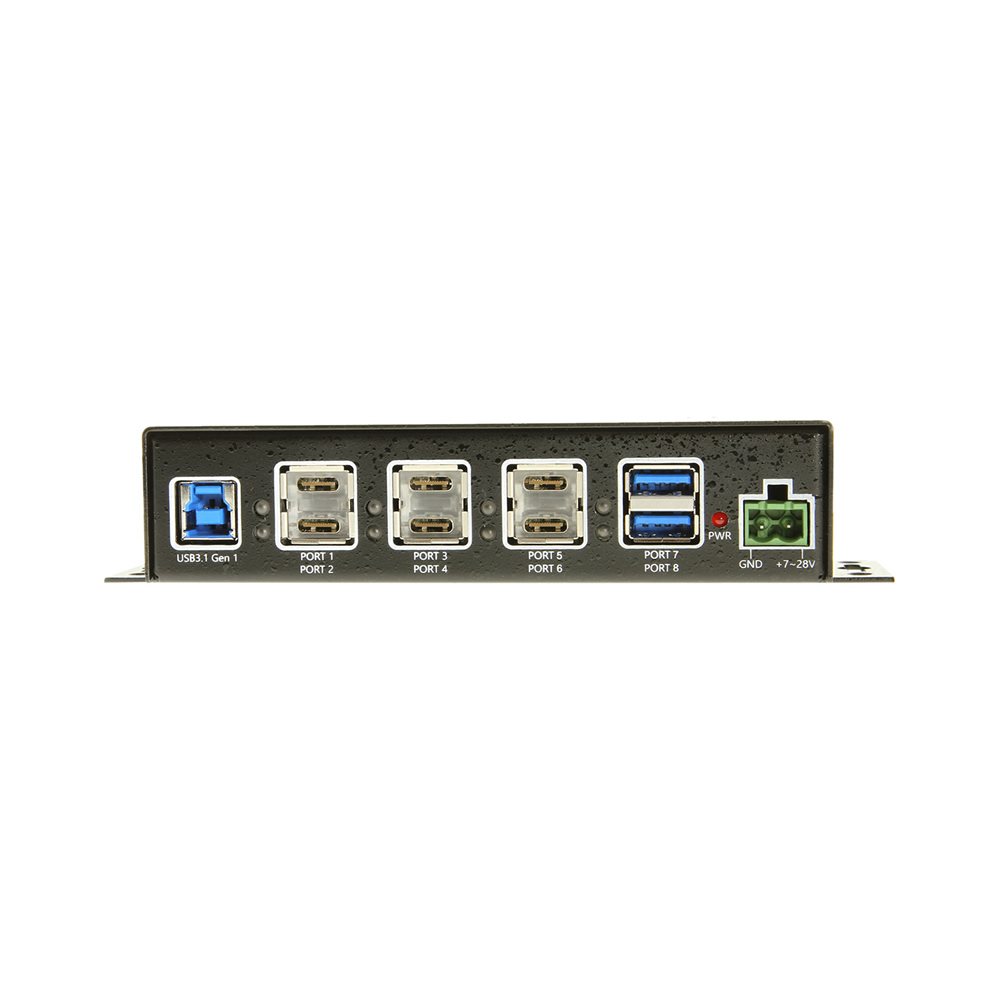

Coolgear’s new CGL-6PC2PAH unique design USB 3.1 dual type 8 Port Hub provides six Type-C data ports and one Type-A data port. The remaining 8th port is a charge only port supporting QC2.0/3.0 quick charging and BC1.2 battery charging standards. Port eight supports up to 25 watts charging for Apple and Samsung devices.

The industrial-grade hub unique feature are its glowing USB-C ports that change from green to blue once connected. This serves as a great visual indicator that a solid port connection has been made. Each of the USB 3.1 Gen1 seven data ports supports up to 1.5A of power output. Operating USB equipment such as printers, scanners, portable drives, virtual reality gear and others are not a problem.

The CGL-6PC2PAH supports self-power through a 2-wire plug from an external 12V power supply (sold separately) which supports the single port #8 25W charging.

USB 3.1 Dual Type Hub Features

• Supports systems with USB Type-A or Type-C ports
• Provides (6) Type-C reversible downstream ports supporting 5Gbps data speeds
• Supports 15KV ESD surge protection for each port
• Supports +7 – 28V DC wide range self-power input through 2-pin terminal plug (power adapter sold separately)
• Is a self-powered hub with a 12V external power supply (sold Separately)
• Compliant with USB 3.1 Gen1 Specifications
• One 25W dedicated charging port / 6 USB-C data ports / 1 USB-A data port
• Compliant with QC2.0/3.0 Quick Charging specifications
• Supports AppleFast and Samsung Charging
• Compliant with battery charging specifications 1.2
• Led indicators each port
• Item Dimensions: 5.46in(L)(6.50 w/ears) x 2.589in(W) x 1.28in(H)
• Item weight: 12.1 oz (.756lbs.)
• Flat surface mountable
