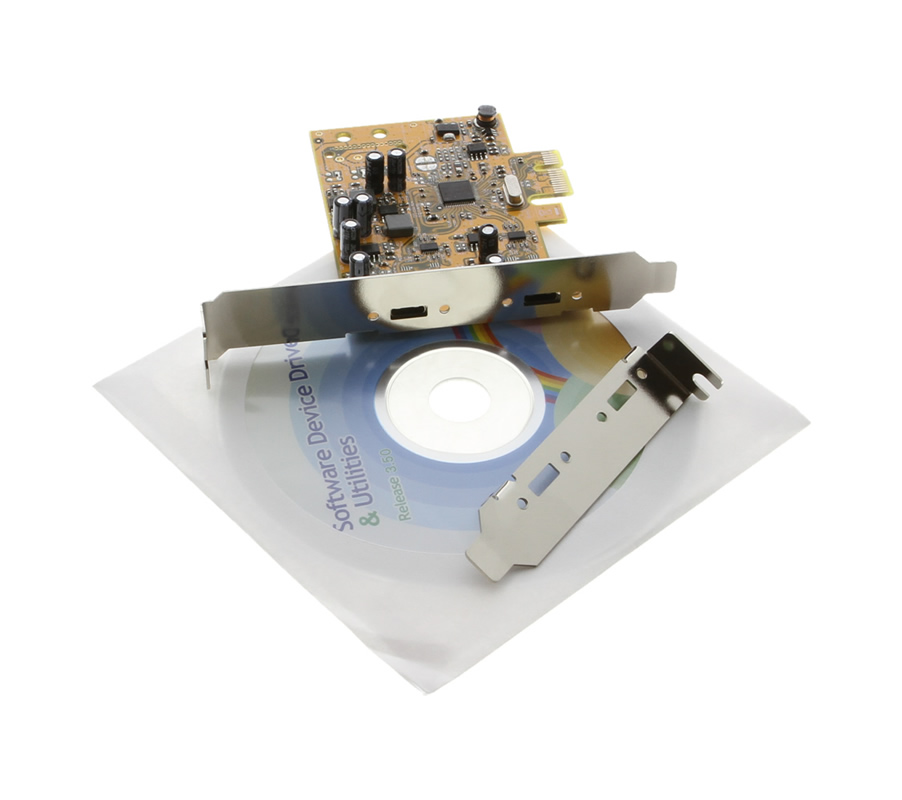

PCIe (x1) USB-C Adapter for Workstations

The CG-2PTCX1PCIe USB-C Adapter is a USB 3.1 PCIe (x1) Card that can be installed in your Desktop, Server, or Thin Client to connect to new peripheral technology.

The multiple USB3.1 Type-C connection architecture supports concurrent operation of hot-swappable, smaller, reversible new USB features while maintaining all speed compatibility with USB1.1, USB 2.0, USB 3.0, and USB 3.1.

The PCIe USB-C Adapter also supports all USB compliant data transfer type such as Control, Bulk, Interrupt, USB Attached SCSI Protocol and Isochronous Transfer. The USB3.1 function supports many popular devices, including digital video camcorders, hard disks, Pen Drives, CD-R, CD-RW, Camera and high-resolution color printers.

PCIe (x1) USB-C Adapter Card Features

• Fully PCI Express Gen2x1 Specification Compliant
• Supports 2 USB3.1 Host Downstream Facing Ports (DFPs)
• Supports 2 reversible Type-C Connectors
• Fully Compliant with USB3.1 Gen 2 Specification Rev. 1.0
• Compliant with xHCI Specification Revision 1.1
• Compliant with USB Attached SCSI Protocol Rev. 1.0
• Supports USB3.1 Gen 1, Gen 2, USB2.0 and 1.1 Devices
• Built-in Over-current Protection for Each Port
• Supports 3A USB Bus Power for Each Port
• Supports Low Profile PCI Express Form Factor
• Supports USB Cable Screw-lock Mechanism
• Supports Windows XP, 2003, 2008, Vista, Win7, 8.x and 10

Differences between PCIe x1 and x2 cards

PCIe X1 card visually has both a narrow and wide contact area for the PCI slot	The PCIe X2 visually has two wide contact points for connection to the PCI slot.

Supports the Following Speed Data Rate:

• Low-Speed (1.5Mbps)/Full-Speed (12Mbps)
• High-Speed (480Mbps)
• Super-Speed (5Gbps)
• Super-Speed+(10Gbps)

Specifications

USB 3.1 Type-C Ports

• • Provide 2 USB3.1 Type-C Downstream Facing Connectors, Screw Lock Mechanism for Cable Security
  • Compliant with USB3.1 Rev. 1.0 and Intel xHCI Rev. 1.0 Specifications
  • Supports all USB Compliant Data Transfer Type (Control/Bulk/Interrupt/Isochronous Transfer)
  • Supports 3A USB Bus Power for Each Port

Data Transfer Rate

• • Up to 10Gbps PCI Express Gen2x1 Burst Rate
  • Supports 3A USB Bus Power for Each Port

USB 3.0 and USB Legacy Devices

• • Supports up to 64 USB devices (USB1.1, USB2.0, USB3.0, USB3.1 and the Hub Devices), including hard drives, Pen Drives, CD-ROMs, DVDs, Digital cameras, digital VCRs, high resolution color printers, scanners, Video Cable Set-Top Boxes, and more.

I/O Hardware

• • 2 USB3.1 Downstream Type-C Connectors
  • Supports Low Profile Form Factor Short Bracket

Form Factor

3.41″ x 2.67″ (86.83mm x 67.89mm)
