This product is discontinued and no longer available.

Please see CGL-CCG3PAv3 as a replacement.

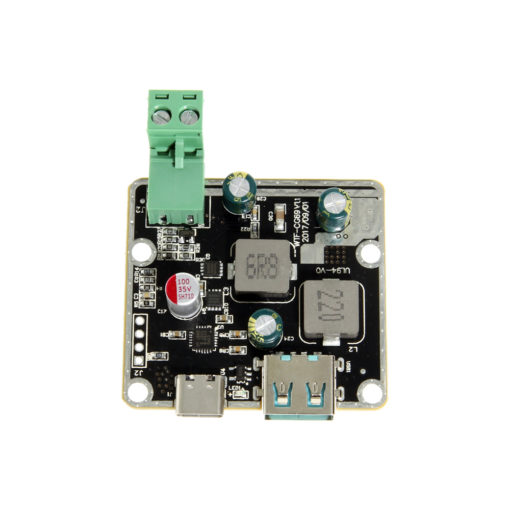

High Power 60W USB Car Charger PCBA

With 12~24Volt DC input this device provides USB Type-C PD, and USB Type-A with True support for QC3.0 as well as Samsung/LG/Apple up to 2.4 amps.

The USB Car Charger 60W PCBA supports PD profiles on a USB Type-C Port with 60 Watt maximum output. It connects to a standard 12V automotive power input or industrial 24V power input via 2-Pin Phoenix Connector. The USB PD PCBA with Type-C port supports up to 60 Watts of PD Power, 5~20 Volt profiles and compatible with ALL USB power delivery devices.

FCC Approved

Dual Port Charger PCBA

• Dual USB Port Industrial Charger PCBA: USB-C (Type-C) port with power delivery (PD), plus USB-A (Type-A) port with QC 3.0
• USB-A with Quick Charge 3.0 technology that provides up to 18W of charging power and legacy charging up to 2.4A
• USB-C with Power Delivery providing up to 60W of power utilizing the Cypress CCG2 Chipset
• Item Dimensions: 49.00 mm(L) x 45.00 mm(W) x 11.92 mm(H)

Power Output Specifications

• 60 Watts USB-C PD (5V/3A, 7V/2.5A, 9V/3A, 12V/3A, 15V/3A, 20V/2.99A)
• 18 Watts USB-A QC 3.0 (12V/1.5A, 9V/2A, 6V/3A)
• 78 Watts Peak Total Combined Power Output (Recommended 75 Watts Total Combined Output)

The innovative, high-performance, universal 60W PCBA allows for one of the fastest and most efficient charging experiences for new Macbook / Macbook Pro, Chromebook, and all other USB-C laptops and notebooks.

Power Delivery (PD) Safety:  With the built-in Cypress PD chipset, our product dynamically detects devices to deliver optimum power level for maximum battery life and performance. Equipped with advanced circuit protection to prevent over charging to your device.

Tested Devices by our Customers using this Device:

galaxy s9, galaxy s10, galaxy note 8, galaxy note 5, galaxy note 4, galaxy note 3, galaxy note 2, galaxy s8 ,galaxy s8+, galaxy s7, galaxy s7 edge, galaxy s6, galaxy s6 edge, galaxy s5, galaxy s5 active, iphone 8, iphone 8 plus, iphone 7s, iphone 7s plus, iphone 7, iphone 7 plus, iphone 6s, iphone 6, iphone 6s plus, iphone 6 plus, iphone se, iphone 5, iphone 5s, iphone 5c, ipad, ipad mini, ipad air, ipad pro, ipad retina, htc one a9, htc 11, htc 10, htc one m9, htc one m8, htc one m7, sony xperia, motorola, moto e, moto g, oneplus 6, one plus2, lg g6, lg g5, lg g4, lg g3, lg g pad, nexus 5, nexus 6p, nexus 5x, google pixel, pixel xl, pixel 2, pixel 2 xl ,hp elite x3, lg v20, lg v10, zte axon 7, zenfone 3 dexluxe, universal, phone, tablet, gps, bluetooth speaker, powerbank, portable charger, backup battery, notebook, chromebook, laptop, speakers

Product Specifications

Product Documentation & Drivers

Need drawings, CAD files, or other compliance documentation? Click HERE
