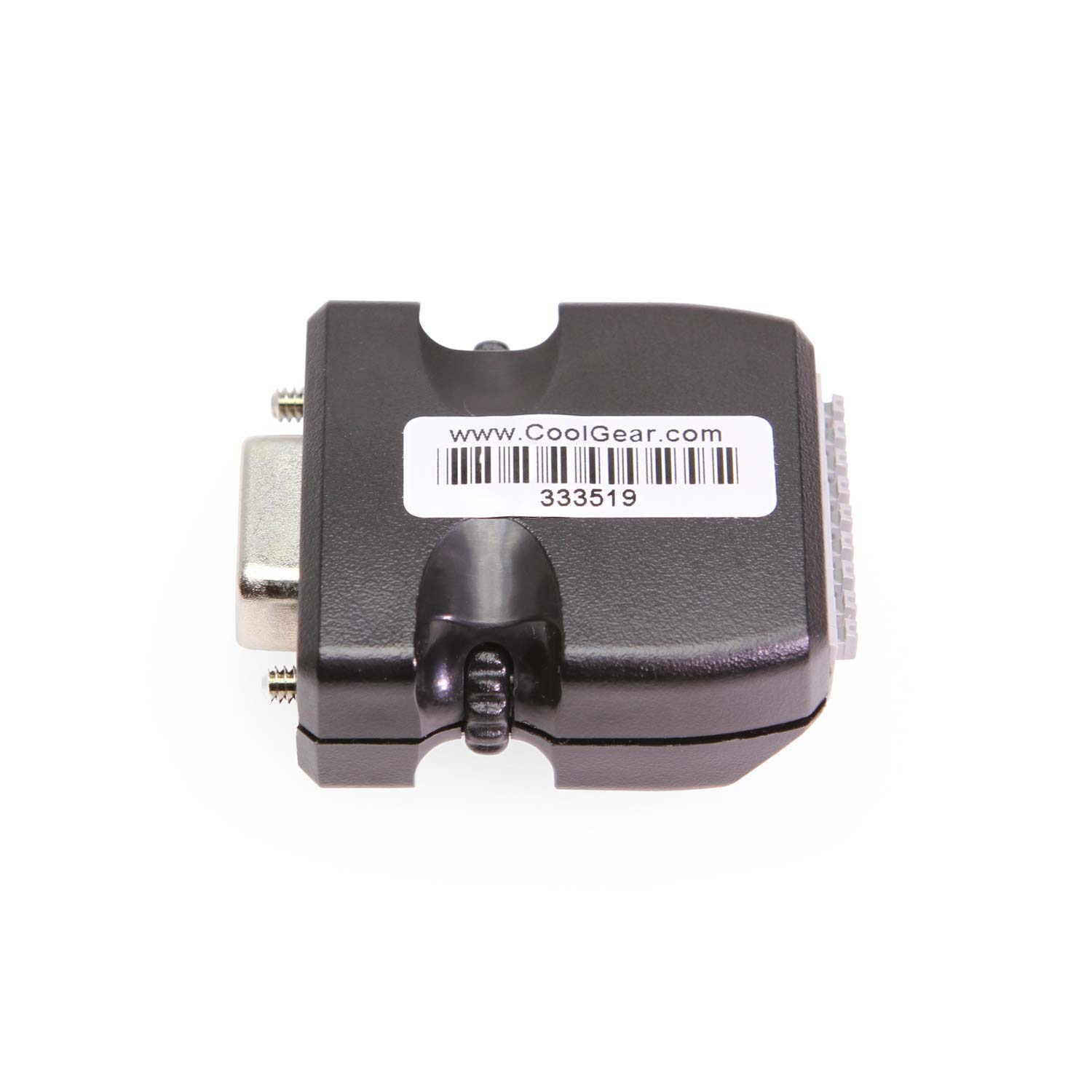

DB9 Female 9-Pin to Terminal Block CAN Terminator

This TB-DB9TO9CAN DB9 female to screw-less 9-pin terminal block adapter provides a convenient and quick solution to convert a DB9 to a 9-pin terminal block for easy and fast writing in CAN Bus. This CAN terminator consists of a 120 Ohm termination resistor.

  • Converts the DB9 Male input connected to the Female DB-9 serial port to a terminal block connection for fast easy writing in CAN Bus.
  • Supports screw-less wiring with complete RS-422 or RS-485 data signals.
  • Extremely compact terminal block connector reduces bulky adapters when needed.
  • Easy identification on the adapter for 9 signal pins.
  • 120Ohm termination resistor.

$34.99

In stock

View Volume Pricing

Units Price
1 - 4 $34.99
5 - 11 $33.94
12 - 24 $33.24
25 - 49 $32.54
50+ $31.49

Model No. TB-DB9TO9CAN

Description

Introduction:

This TB-DB9TO9CAN DB9 female to screw-less 9-pin terminal block adapter provides a convenient and quick solution to convert a DB9 to a 9-pin terminal block for easy and fast writing in CAN Bus. This CAN terminator consists of a 120 Ohm termination resistor. All CAN networks need two terminators, one at each end of the network. The TB-DB9TO9CAN CAN Terminator can be used where the CAN cable or CAN note at the end does not internal termination.

Features & Specifications:

  • Converts DB9 female to 9-pin terminal block
  • Screw-less terminal block with spring clamps for easy and fast wiring
  • Terminal block provides complete 9 signals connecting directly to the 9 pins of the DB9 female connector
  • 120Ohm termination resistor between pin 2 and pin 7 (CAN_H and CAN_L)
  • Terminal Block Wire range:
    • Solid/Stranded wire (AWG): 20-26
    • Wire strip length: 8.5-10.0 mm / 0.34-0.39 inch
    • Power Rating: DB9: 250V, 1.5A.
    • Terminal Block: 300V, 2A
    • Operating temperature: -40°C to 115°C (-40°F to 239°F)
Dimensions:

35 (L) x 43 (W) x 17 (H) mm

1.38 (L) x 1.69 (W) x 0.67 (H) inch

Package Contents:

  • TB-DB9TO9CAN Terminal Block CAN Terminator
