USB 2.0 to IDE / SATA Adapter, Works with 2.5/3.5/5.25 HDD

IDE SATA Adapter – USB 2.0 Host

Universal USB 2.0 to IDE/SATA to USB Adapter kit. Supports all sizes and styles of hard drives, from laptop IDE drives to desktop SATA optical drives, this adapter can read them all.

  • Enables the connection of IDE/ATA Drives and SATA Drives.
  • Includes a True Back-Up and Restore option. (Windows only)
  • Supports IDE from 20GB to 2000GB and SATA or SATA II from 80GB to 2000GB.
  • JM20337 IDE and SATA to USB chip with Back-Up software and single Button Back-Up Activation Feature.

$34.95

(7 customer reviews)

In stock

Model No. USBG-123ASD

Quick Links:

Description

Also available from the following online retailers:

  CoolDrives-Buynow serialgear-Buy-now USBGEAR-Buy-nowBuyNowAmazon



The USBG-123ASD, a USB 2.0 to IDE / SATA Adapter will enable you to connect to both IDE/ATA drives and the new and popular SATA drives. USB converters are a must have device for you to easily transfer data between hard disk drives during PC migration or upgrading, and a must have gadget for any PC service technicians.

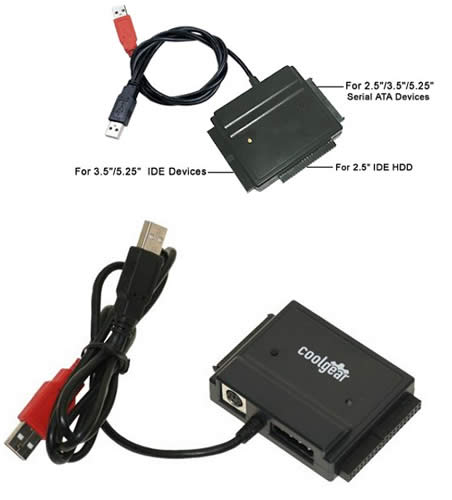

USBG-123ASD, a USB 2.0 to IDE/SATA Adapter image

The USB 2.0 to IDE / SATA converters are a must have device for you to easily transfer data between SATA and IDE Hard Drive or Optical Drive. The adapter supports IDE Hard Drives from 20GB up to 2000GB (2TB), supports SATA or SATA II Hard Drives from 80GB up to 2,000GB (currently tested up to 2000GB WD and Seagate), and supports IDE or SATA ATAPI Optical Drives CD/DVD/CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW/CD-ROM

Package Contents (Pictured above):

  • 1x USB to disk drive adapter
  • 1x Power Adapter
  • 1x US-Style 2-pin power cable

Additional Features:

  • UL and FCC Approved HIGH-Output Power Adapter
  • JM20337 IDE and SATA to USB chip.
  • Convert 2.5″/3.5″ Serial ATA HDD and 5.25″ Serial ATA Devices into USB2.0 interface
  • Convert 2.5″/3.5″ IDE HDD and 5.25″ IDE Devices into USB2.0 interface
  • Max transfer speed 480Mb/s
  • Power adapter for 3.5″/5.25″ devices; Bus-Power for 2.5″ HDD

OS Support:

All operating systems which support USB Mass Storage devices, such as:

  •  Windows XP,  Vista, Windows 7, Windows 8, Windows 10.
  • Linux
  • Mac OS 10.X
Specifications

Product Specifications

Identifier
UPC

729440625269

Mechanical
Color

Black

Other Data
Warranty

1 year from date of purchase

Weight

1.1 lbs

Dimensions

7.25 × 5.25 × 2.5 in

UPC: 729440625269
Support

Product Documentation & Drivers


Need drawings, CAD files, or other compliance documentation? Click HERE

Reviews (7)

7 reviews for USB 2.0 to IDE / SATA Adapter, Works with 2.5/3.5/5.25 HDD

  1. Genecon

    As many have said, this product works as advertised.
    This is honestly my first experience with this specific type of device, so please forgive my simplistic evaluation.
    I, too, lost a couple of PC’s that I loved and used to their fullest potential for a good deal of time. The greatest frustration I experienced, and the main driver for acquiring this device, was 3 out of the 4 hard drives I had recently had to put in dry storage were 3.5″ IDE HDD’s, the other being SATA. The problem of my latest motherboards only supporting SATA drives became quickly apparent.

    This was the solution!

    I have now rescued all the files and important memories stored on these drives and feel a great deal of relief because this device did what it said it could.

    It seems to readily identify itself on Windows 7, though I did manually install all the packaged drivers and software.

    I did not use the software provided for the retrieval process, opting instead to scan the drives for discrepancies and copy them in their entirety to a much larger external USB drive for safe keeping.

    The transfer rate was surprisingly swift. I admit, I had low expectations for the SATA/IDE conversion to USB 2.0 with regards to swap speed. I realize that most of that has to do with the machine I am using as a “middle man” for the transaction, but hardware also plays a big role in performance. This device delivers.

    The device even feels solidly built. I was fully expecting a molded plastic box with connectors. Upon opening the box, i was pleasantly surprised to see and feel the connector itself is both plastic and has aluminum plates on the top and bottom. It appears as if the bottom plate can be removed and the device serviced.

    All in all, this was solid choice for what I needed and I am glad I purchased it.

    Cheers~

  2. Brian24hrs

    Great price fast shipping

  3. techie59

    very pleased with the fast service received. Product works very well I would recommend to anyone. The adapter is a good value and I feel will last a long time and hold up to shop usage.

  4. Speedbird

    Rescued an old drive from a dead Dell but wanted to get the photographs and music off it. Product arrived promptly and it took no more than about 5 minutes from unpacking to plugging the USB into my Mac and seeing the whole drive.

  5. Shupau

    excellent service, outstanding transaction………..will do business with again
