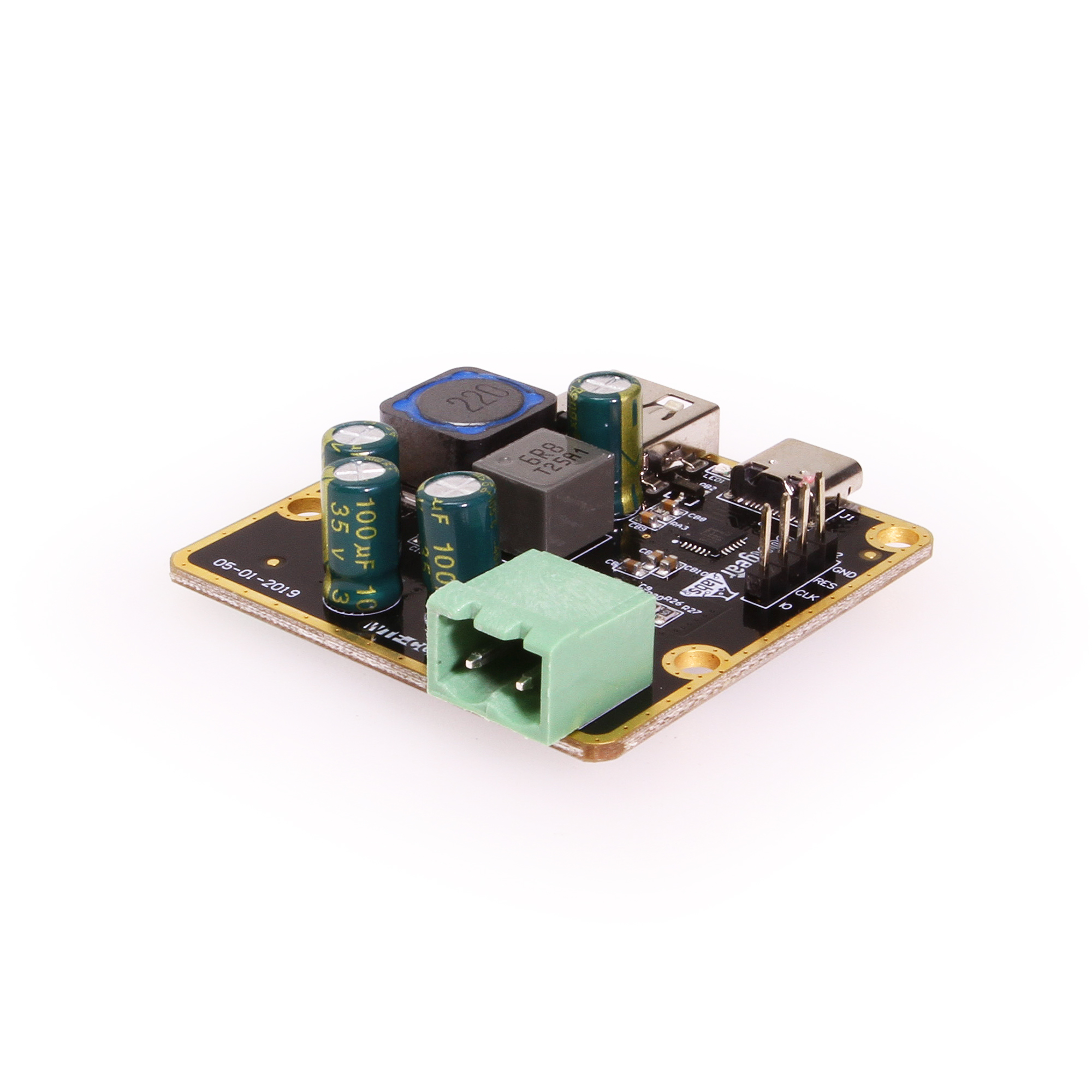

USB Type-C 60 Watt Charger PCBA with CCG2 Chipset and End User Programmability

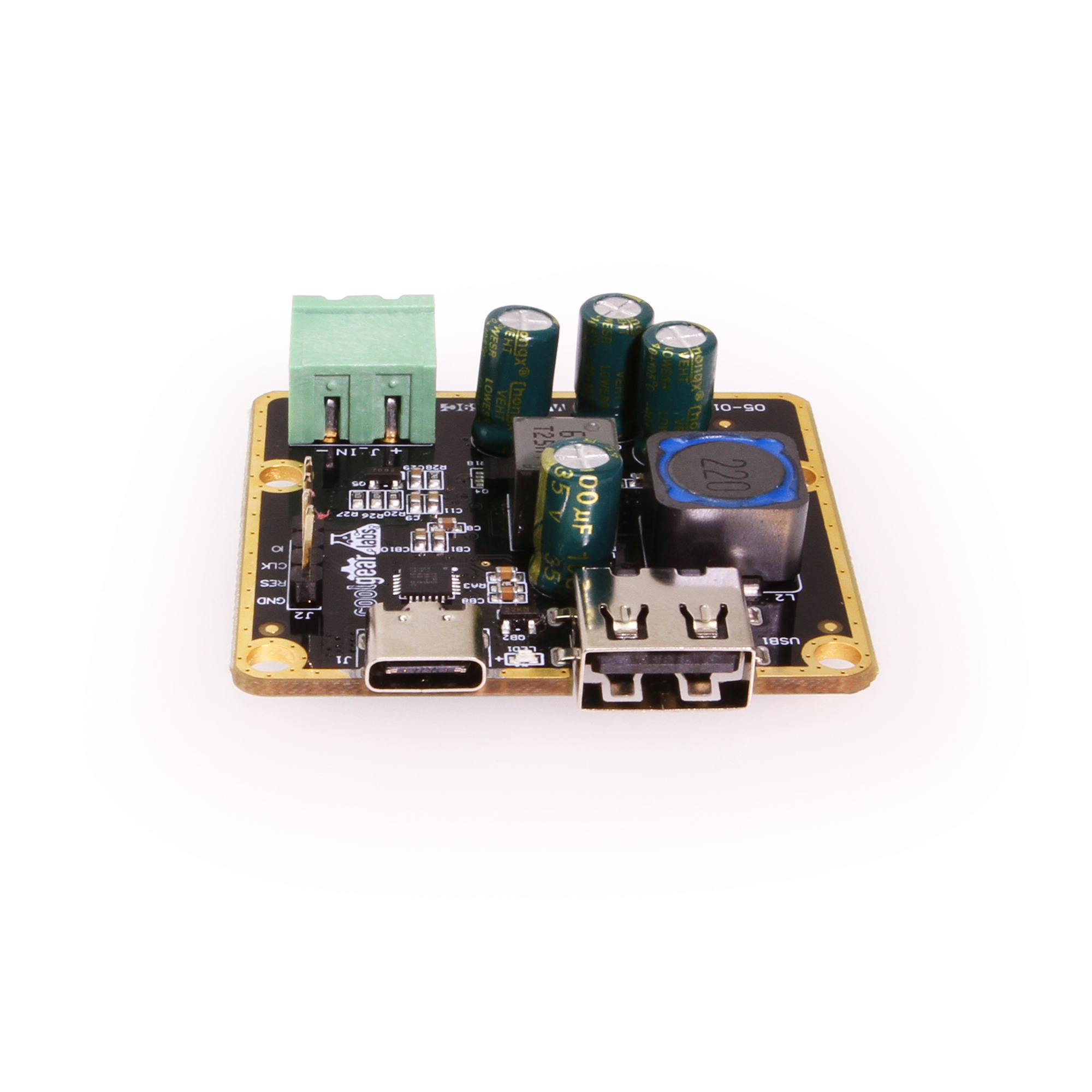

USB Type-C 60 Watt Charger PCBA with CCG2 Chipset and End User Programmability - Image 2

USB Type-C 60 Watt Charger PCBA with CCG2 Chipset and End User Programmability - Image 3

USB Type-C 60 Watt Charger PCBA with CCG2 Chipset and End User Programmability - Image 4

USB Type-C 60 Watt Charger PCBA with CCG2 Chipset and End User Programmability - Image 5

USB Type-C 60 Watt Charger PCBA with CCG2 Chipset and End User Programmability - Image 6

USB Type-C 60 Watt Charger PCBA with CCG2 Chipset and End User Programmability

Name: USB Type-C 60 Watt Charger PCBA with CCG2 Chipset and End User Programmability
Brand: CoolGear
SKU: WTF-CG69C1
Availability: Out of stock
Rating: 5.00 (1 reviews)

Model No. WTF-CG69C1

USB 60W USB-PD PCBA – Type-C Power Delivery and Type-A Legacy Charging

USB-PD Type-C and QC 3.0 Type-A Charger with Pin Headers for Programming by Customer. Higher Quality Components compared to the WTF-CG69

$27.95

Model No. WTF-CG69C1

Rated 5 out of 5 based on 1 customer rating

Out of stock

Also available from:

Product Documents

Description

This product is EOL/DISCO. It is replaced by PN# CGL-CCG3PAv3

High Power 60W USB Car Charger PCBA

With 12~24Volt DC input this device provides USB type-C PD, and USB type-A with True support for QC3.0 as well as Samsung/LG/Apple up to 2.4 amps.

The USB Car Charger 60W PCBA supports PD profiles on a USB type-C Port with 60 Watt maximum output. It connects to a standard 12V automotive power input or industrial 24V power input via 2-Pin Phoenix Connector. The USB PD PCBA with type C port supports up to 60 Watts of PD Power, 5~20 Volt profiles and compatible with ALL USB power delivery devices.

FCC Approved

Easily program WTF-CG69C1 to your exact PD Specifications using the Cypress MiniProg3 Programmer. Connects directly to pin headers on circuit board. ( You can purchase it directly from Cypress or distributor Find it here )

Dual Port Charger PCBA

Dual USB Port Industrial Charger PCBA: USB-C (Type-C) port with power delivery (PD), plus USB-A (Type-A) port with QC 3.0
USB-A with Quick Charge 3.0 technology that provides up to 18W of charging power and legacy charging up to 2.4A
USB-C with Power Delivery providing up to 60W of power utilizing the Cypress CCG2 Chipset
Item Dimensions: 49.00 mm(L) x 45.00 mm(W) x 11.92 mm(H)

Power Output Specifications

60 Watts USB-C PD (5V/3A, 7V/2.5A, 9V/3A, 12V/3A, 15V/3A, 20V/3A)
18 Watts USB-A QC 3.0 (12V/1.5A, 9V/2A, 6V/3A)
78 Watts Peak Total Combined Power Output (Recommended 75 Watts Total Combined Output)

The innovative, high-performance, universal 60W PCBA allows for one of the fastest and most efficient charging experiences for new Macbook / Macbook Pro, Chromebook, and all other USB-C laptops and notebooks.

Power Delivery (PD) Safety: With the built-in Cypress PD chipset, our product dynamically detects devices to deliver optimum power level for maximum battery life and performance. Equipped with advanced circuit protection to prevent over charging to your device.

Specifications

Product Specifications

Power

Input Voltage	+9~24V DC
Per USB Port Current	2.6 Amp A-Port, 3.15 Amp C-Port
Voltage Profiles	5V/3A, 7V/2.5A, 9V/3A, 12V/3A, 15V/3A, 20V/2.99A

Physical Characteristics

Color	Black
Item Dimensions (L × W × H)	88.48 x 50.88 x 26.32mm
Ports	2 USB Ports

Other Data

UPC	045079161450
USB Interface	Type-C
PD Chipset	CYPD-2134-B
Buck Chipset	SC8701QDER
Weight	0.037 lbs
Dimensions	3.4834646 × 2.0031496 × 1.0362205 in

UPC: 045079161450

Reviews (1)

1 review for USB Type-C 60 Watt Charger PCBA with CCG2 Chipset and End User Programmability

Rated 5 out of 5

Phillip C – November 15, 2022

Works very good only gets warm when using both ports at max, added a heat sink to the inductors and that keeps it cooler.
and measured above 95% efficient. Haven’t to program it.
