USB 3.2 Gen 1 High Speed Isolation Adapter w/Screw Locking USB-B Port

The CG-USB30ISO is a USB 3.2 Gen 1 Super-Speed Isolation Adapter that complies with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1 and offers up to a 5Gbps data rate. Since USB is the most popular external port for the devices to connect to PCs, the CG-USB30ISO provides an ideal solution to isolate your USB ports immediately and save your investments.

$219.95

In stock

View Volume Pricing

Units Price
1 - 4 $219.95
5 - 24 $213.35
25 - 49 $208.95
50+ $202.35

Also available from:

Model No. CG-USB30ISO

Product Documents

Quick Links:

Description

Introduction:

The CG-USB30ISO is a USB 3.2 Gen 1 Super-Speed Isolation Adapter that complies with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1 and offers up to a 5Gbps data rate. It provides 1 downstream facing port with a standard Type-A USB 3.2 Gen 1 connector for your USB 3.x, USB 2.0 and USB 1.1 Devices.

With its 3KVrms isolation controller, its downstream port works backwardly compatible with USB 1.1, USB 2.0 and USB3.x compliant devices. However, it is designed for USB 3.x hosts only, this isolation adapter does NOT support USB 2.0 or USB 1.1 hosts.

The CG-USB30ISO offers a bus-powered mode without the need for an external AC power adapter, perfect for USB devices requiring light power consumption. Plug & Play! An external DC jack port is included if more power is required for the downstream port.

Since USB is the most popular external port for the devices to connect to PCs, the CG-USB30ISO provides an ideal solution to isolate your USB ports immediately and save your investments.

Features:

  • Compliant with USB 3.2 Gen 1 (USB3.0) Super-Speed
  • Host: USB 3.2 Gen 1 or Above (Not USB 2.0 or below host compliant)
  • Provides 1 Type-B Upstream Facing Port
  • Provides 1 Type-A Downstream Facing Port
  • 3,000Vrms Isolation Between Upstream and Downstream Domains
  • Screw-Lock USB Mechanism
  • Supports Wall and Optional DIN RAIL Mounting Kits
  • Up to 5Gbps Super-Speed Data Rate
  • Supports Self-powered and Bus-powered Mode
  • Built-in Power LED Indicator
  • DC Jack for Downstream USB Bus Power

Specifications:

Upstream USB port:
For USB3.2 Gen 1 (USB3.0) or above Hosts

Downstream USB port:
Provides 1 Type-A USB downstream port which manages up to 5Gbps data rate:

  • Supports USB 3.2 Gen 1 Super-speed Devices
  • 3,000Vrms (AC) Isolation
  • Super-speed (5Gbps), High-speed (480Mbps), Full-speed (12Mbps) and Low-speed (1.5Mbps) Data Rate Automatically
  • Screw-Locking USB Mechanism
  • Self-powered (downstream port domain) and Bus-powered Modes
  • DC Jack to Improve Downstream Domain USB Bus Power
  • Wall Mounting and Optional DIN RAIL Mounting Kits
  • Power LED Indicator

USB Devices:

Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, pen drives, virtual reality helmets, modem, PBX and many more

I/O Hardware:

  • 1x External USB1.1/2.0/3.x Type-A connector and 1 Type-B Upstream (only supports USB3.x) connector.
  • 1x DC Jack for external power input from AC adapter

Environmental:

  • Operating Temp.: 0 to 55°C (32 to 131°F)
  • Storage Temp: -20 to 85°C (-4 to 185°F)
  • Operating Humidity: 5 to 95% RH

Form Factor:

3.24”(L)x1.74”(W)x0.87”(H) (8.23 x 4.42 x 2.22 cm)

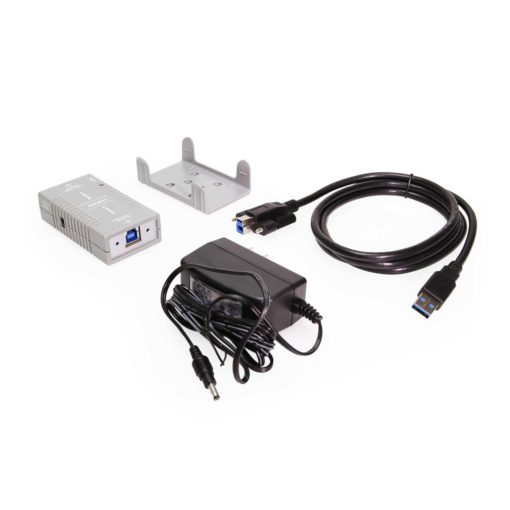

Package Contents:

  • USB 3.2 Gen 1 High Speed Isolation Adapter
  • DC Barrel Jack +5V / 2A Power Supply
  • USB 3.2 Gen 1 Type-B Screw Lock to USB Type-A Cable
  • Mounting Bracket



Specifications

Product Specifications

Power
Power Source

AC Adapter Included, DC Barrel Jack 1.3mm ID × 3.5mm OD

Adapter Input Current

0.5A

Adapter Input Voltage

100~240V AC

Adapter Output Current

2A

Adapter Output Voltage

5V

External Power Required

No

Mechanical
Color

Gray

Item Dimensions (L × W × H)

3.24 × 1.74 × 0.87 in.

Item Weight

0.125 lbs.

USB
USB Type

USB 3.2 Gen 1

Upstream USB Ports

1 Type-B Female USB

Downstream USB Ports

1 Type-A Female USB

Isolated/Surge Protected

Yes

Screw Lock Compatible

Yes

Environmental
Operating Temperature

0C to 55C

Storage Temperature

-20°C ~ +80°C

Product Information
Warranty

1 year from date of purchase

Hardware
LED Indicators

Power

Performance
Isolated/Surge Protected

Yes

Max Data Transfer Rate

5Gbps

Other Data
UPC

045079163157

Weight

0.532 lbs

Dimensions

9.00 × 6.250 × 1.750 in

UPC: 045079163157
